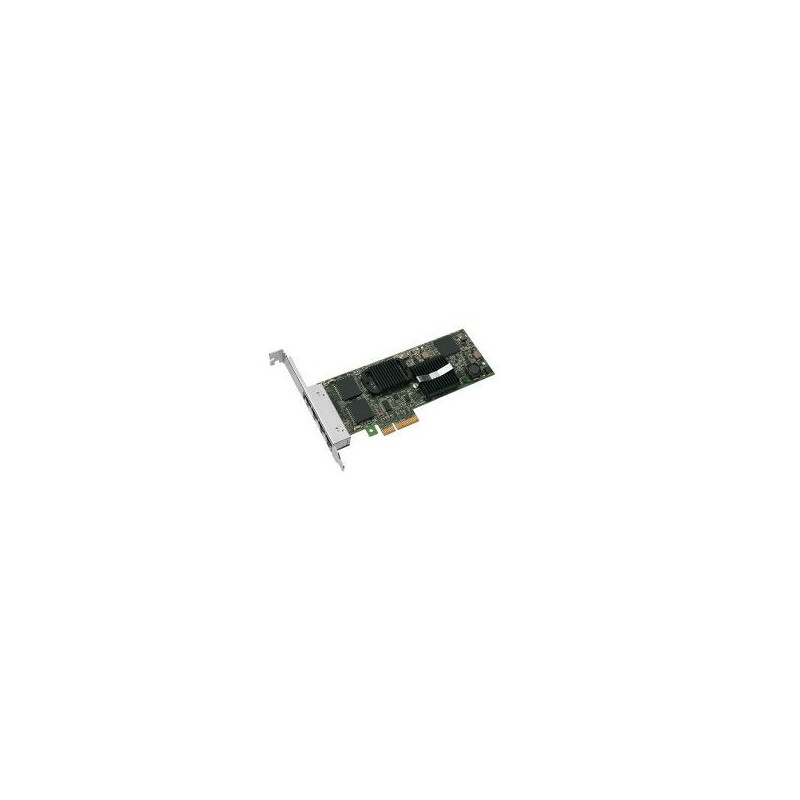

Intel E1G44ET2

Intel E1G44ET2

E1G44ET2, 4x RJ-45, Gigabit Ethernet, PCI-E
Out of Stock
Reference: E1G44ET2BLK

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Intel® PRO/1000 PF Quad Port Server Adapter and Intel® PRO/1000 PT Quad Port Server Adapter are not detected by the system when inserted into a PCIe 2.0 slot.



If you require a Quad Port server adapter and have PCIe 2.0 slots, Intel recommends you use any of the following:

Intel® Gigabit ET2 Quad Port Server Adapter (P/N E1G44ET2)
Intel

Data sheet

Built-in processor
Intel 82576
Cable type
Category-5 up to 100m
Cabling technology
10-100-1000Base-T(X)
Certification
FCC B, UL, CE, VCCI, BSMI, MIC
Compatible operating systems
Windows Vista/2003/2008
Linux
FreeBSD 7.0
UEFI 1.1
VMware ESX 3.x
Compliance industry standards
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab
Connectivity technology
Wired
Data transfer rate (max)
1000 Mbit/s
Depth
167.4 mm
Host interface
PCI-E
Interface
XFP
Interface type
PCIe v2.0 (2.5GT/s)
Networking features
Yes
Operating relative humidity (H-H)
35 - 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Power consumption (typical)
9W
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Supported data transfer rates
10/100 Mbit/s
Width
694 mm
Message signal interrupt
Yes

Specific References

EAN13
0735858214612
