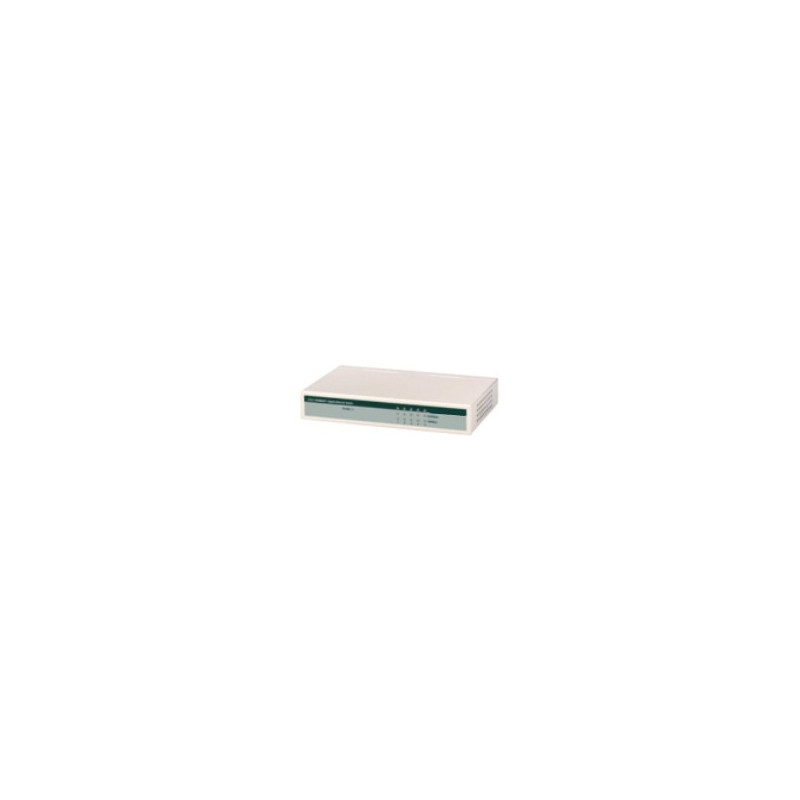

Dynamode 5 Port Desktop 10/100/1000 Desktop Switch
5 Port Desktop 10/100/1000 Desktop Switch
All the power of Gigabit - in a desktop Switch!
The SWG50010-D is a powerful desktop Switch with all the power of Gigabit Ethernet to power your existing network at home or in the office.
Featuring 5-Ports of auto-sensing 10/100/1000Mbps connectivity, this Switch is fully backward compatible with existing Ethernet and Fast Ethernet Networks - move up to Gigabit and unleash the power of up to ten times the speed of extsing Fast Ethernet!
Need a Gigabit Network Card? Check out our low cost NC1000TX-G
FEATURES
-5-Port 10/100/1000 Gigabit.
-IEEE802.3, 3u, 3ab Gigabit compliance.
-ASIC Routing Engine.
-4K MAC Address Table.
-4K Queue Buffer.
-Full/Half Duplex operation.
-Auto Partioning.
-Full Status LEDS for POWER, LINK, SPEED, ACTIVITY.
-External UK Power Supply.
-FCC, CE Approved.
The SWG50010-D is a powerful desktop Switch with all the power of Gigabit Ethernet to power your existing network at home or in the office.
Featuring 5-Ports of auto-sensing 10/100/1000Mbps connectivity, this Switch is fully backward compatible with existing Ethernet and Fast Ethernet Networks - move up to Gigabit and unleash the power of up to ten times the speed of extsing Fast Ethernet!
Need a Gigabit Network Card? Check out our low cost NC1000TX-G
FEATURES
-5-Port 10/100/1000 Gigabit.
-IEEE802.3, 3u, 3ab Gigabit compliance.
-ASIC Routing Engine.
-4K MAC Address Table.
-4K Queue Buffer.
-Full/Half Duplex operation.
-Auto Partioning.
-Full Status LEDS for POWER, LINK, SPEED, ACTIVITY.
-External UK Power Supply.
-FCC, CE Approved.
Data sheet
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Certification
- FCC A, CE A, VCCI-A
- Dimensions (WxDxH)
- 171 x 98 x 29 mm
- I/O ports
- MDI/MDI-X
- MAC address table
- 96000 entries
- Maximum data transfer rate
- 96 Gbit/s
- Memory type
- SLC
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Packet buffer memory
- 0.256 MB
- Ports quantity
- 5
- Power consumption (typical)
- 8.5 W
- Power over Ethernet (PoE) support
- No
- Power supply type
- DC 7.5V
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- 10 - 70 °C
Specific References
- EAN13
- 8400800006868
