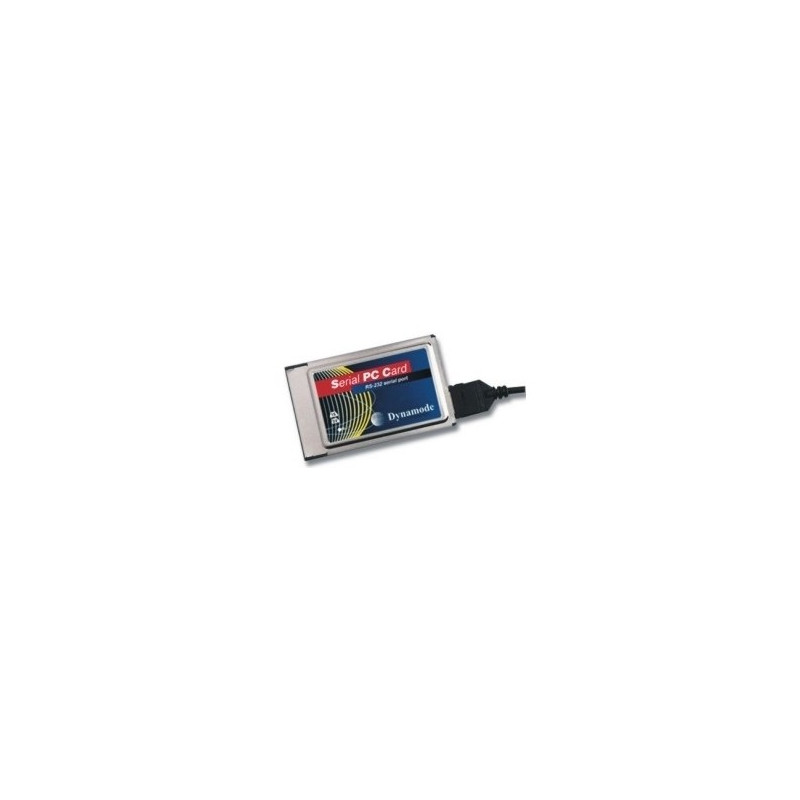

Dynamode RS232 PCMCIA Serial Port

Dynamode RS232 PCMCIA Serial Port

RS232 PCMCIA Serial Port
Out of Stock
Reference: LC232RS

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Avaliable now as a low form factor PCMCIA adapter, the LC232RS is a fully featured RS232 adapter for specific applications for mobile users.



Comes complete with industry standard DB-9 serial adapter and is perfect for specific applications including Modem dialup, Process Control and EPOS systems.



With an improved design including ASIC architecture, low power consumption and full Plug n Play.



FEATURES

-Out-of-the-box installation with Windows CE, Windows 95/98, Windows NT Windows 2000 WinME and Windows XP.

-Buffered 16550 UART for fast Windows operation.

-Platform independent - supports all PC Card, Type II compliant PCs.

-Card and Socket Services support.

-Removable industry standard DB-9 male connector.

-Serial port installs as a standard COM port.

-Easy installation and configuration.

-Dynamode ASIC for low power consumption and high reliability.
Dynamode

Data sheet

Certification
CE (EN55022 A, EN50082-1)
Compatible operating systems
Windows CE 2.0/95/98/NT/2000/ME/XP
Connectivity technology
Wired
Data transfer rate (max)
0.056 Mbit/s
Depth
85 mm
Height
5 mm
Host interface
PC Card
I/O ports
DB-9 male
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 - 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 50 °C
Power requirements
80 mA
Source data-sheet
Icecat.biz
Supported data transfer rates
50,75,150,300,600,1200,2400,4800,7200,9600,19.2 Kbit/s
38.4k, 57.6k, 115.2kps
Weight
84 g
Width
993 mm

Specific References

EAN13
8400800001993
