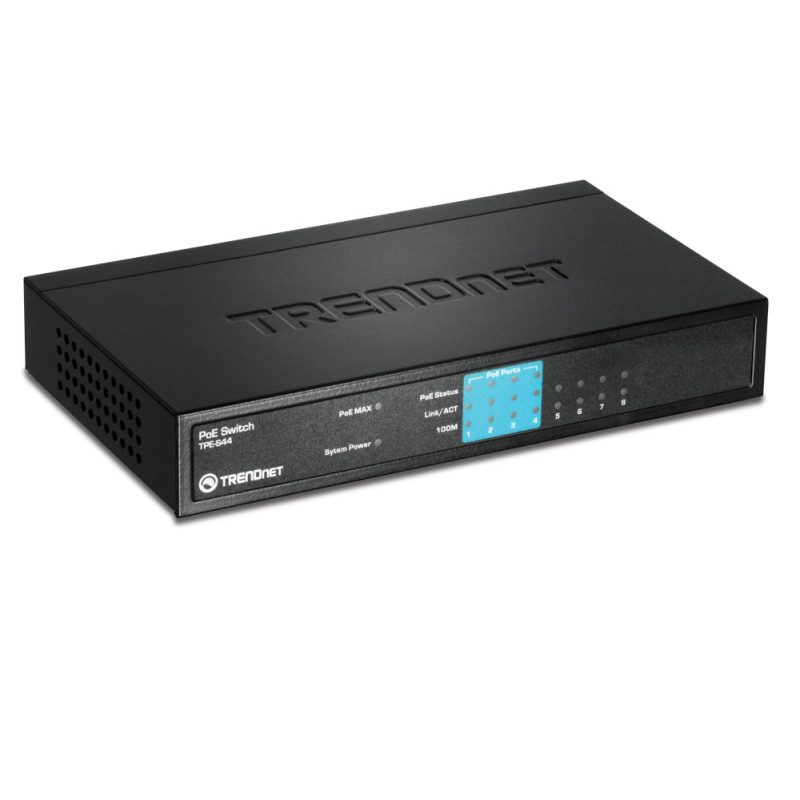

Trendnet TPE-S44

Name: Trendnet TPE-S44
Brand: Trendnet
SKU: TPE-S44

8-Port 10/100Mbps PoE Switch

Out of Stock

TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.

-Reduces equipment cost by delivering data and power over existing network cables.

-4 PoE and 4 standard 10/100Mbps ports.

-Flow Control for Full-Duplex mode.

-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.

-8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.

-Built-in 4 PoE Ports (Port 1 ~ Port 4).

-Supports PoE Power Maximum 15.4 watts for each POE port.

-Supports PoE Powered Device (PD) classification identify.

-Full Wire-Speed Non-Blocking Reception and Transmission.

-Store and Forward Switching Method.

-96Kbytes RAM Data Buffer and 1K entries MAC Address Table.

-Extensive Diagnostic LED´s on the Front Panel.

-IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode.

-5-year limited warranty.

Brand Trendnet

Data sheet

Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Certification: FCC, CE
Colour of product: Blue
Connectivity LEDs: Yes
Connectivity technology: Wired
Copper ethernet cabling technology: 100BASE-TX,10BASE-T
DC-in jack: Yes
Dimensions (WxDxH): 171 x 98 x 29 mm
Ethernet LAN (RJ-45) ports quantity: 8
Management: Unmanaged
Maximum data transfer rate: 96 Gbit/s
Mounting: Desktop
Networking features: Ethernet, Fast Ethernet
Networking standards: IEEE 802.3,IEEE 802.3af
Operating relative humidity (H-H): 10 - 90 %
Operating relative humidity range: 10 - 90 %
Operating temperature (T-T): 8 - 35 °C
Operating temperature range (T-T): 0 - 40 °C
PoE: Yes
PoE Ports Qty: 4
Ports quantity: Range, depending on model
Power over Ethernet (PoE) support: Yes
Power requirements: 48V DC, 0.8A
RJ45 Ports Qty: 8
Source data-sheet: Icecat.biz
Stackable: No
Storage temperature (T-T): 8 - 85 °C
Storage temperature range (T-T): -10 - 70 °C
Supported data transfer rates: x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported protocols: CSMA/CD
Switch Speed: 10/100
Weight: VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
