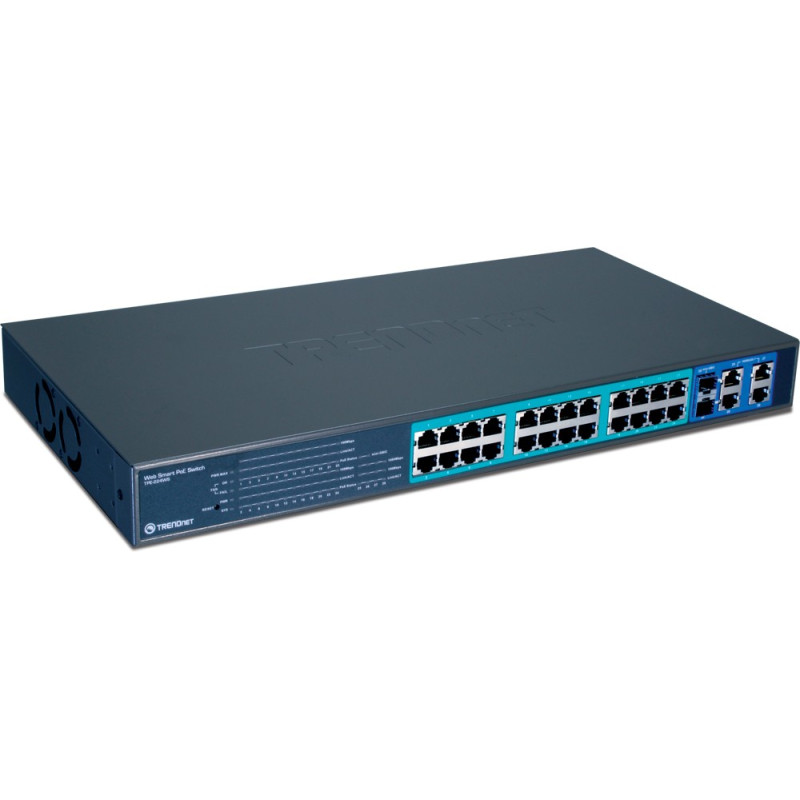

Trendnet TPE-224WS, 28-Port Gigabit Web Smart PoE Switch

Name: Trendnet TPE-224WS, 28-Port Gigabit Web Smart PoE Switch
Brand: Trendnet
SKU: TPE-224WS

28-Port Gigabit Web Smart PoE Switch

Out of Stock

TPE-224WS 28-port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-224WS reduces equipment cost by delivering data and power over existing network cable infrastructure. The switch offers advanced network management features such as VLAN and QoS to meet today´s secured network applications.

-Reduces equipment cost by delivering data and power over existing network cables.

-24 PoE 10/100Mbps and 4 Gigabit Auto-MDIX and Auto-Negotiating ports.

-Features Port-Based VLAN support, QoS, Trunking and more.

-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.

-24 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet PoE RJ-45 Ports.

-4 x 10/100/1000Mbps Auto-Negotiating and Auto-MDIX Gigabit Ports.

-2 x 1000Base-SX/LX Mini-GBIC Slots for Optional Mini-GBIC Modules.

-Supports PoE Power up to 15.4 watts for each PoE port.

-Supports PoE Power maximum up to 170 watts for all PoE ports.

-Supports PoE Powered Device(PD) classification identify.

-Full Wire-Speed Non-Blocking Reception and Transmission.

-Store and Forward Switching Method.

-1Mits RAM Data Buffer and 8K entries MAC Address Table.

-Extensive Diagnostic LED´s on the Front Panel.

-Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap).

-Supports 802.1Q VLAN (VID 1 ~ 4094), IGMP Snooping, Trunking and Port Mirroring.

-Port Setting Function, Users can set each Port´s Availability, Speed, Duplex Mode, and Flow Control.

-Easy configuration via Web browser.

-Standard 19” (1U) Rack-Mount size (kit included).

-5-year limited warranty.

Brand Trendnet

Data sheet

Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Certification: FCC, CE
Connectivity LEDs: Yes
Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10BASE-T
DC-in jack: Yes
Dimensions (WxDxH): 440 x 310 x 44 mm
Ethernet LAN (RJ-45) ports quantity: 24
Management: Smart Managed
Maximum data transfer rate: 96 Gbit/s
Mounting: Rackmount
Networking features: Yes
Operating relative humidity (H-H): 10 - 90 %
Operating relative humidity range: 10 - 90 %
Operating temperature (T-T): 8 - 35 °C
Operating temperature range (T-T): 0 - 40 °C
PoE: No
Ports quantity: 28
Power over Ethernet (PoE) support: Yes
Power requirements: 100 - 240V AC, 50/60Hz
RJ45 Ports Qty: 28
SFP Ports Qty: 2
Source data-sheet: Icecat.biz
Stackable: No
Storage temperature (T-T): 8 - 85 °C
Storage temperature range (T-T): -10 - 70 °C
Supported data transfer rates: x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported protocols: CSMA/CD
Switch Speed: 10/100
Weight: 4430 g
