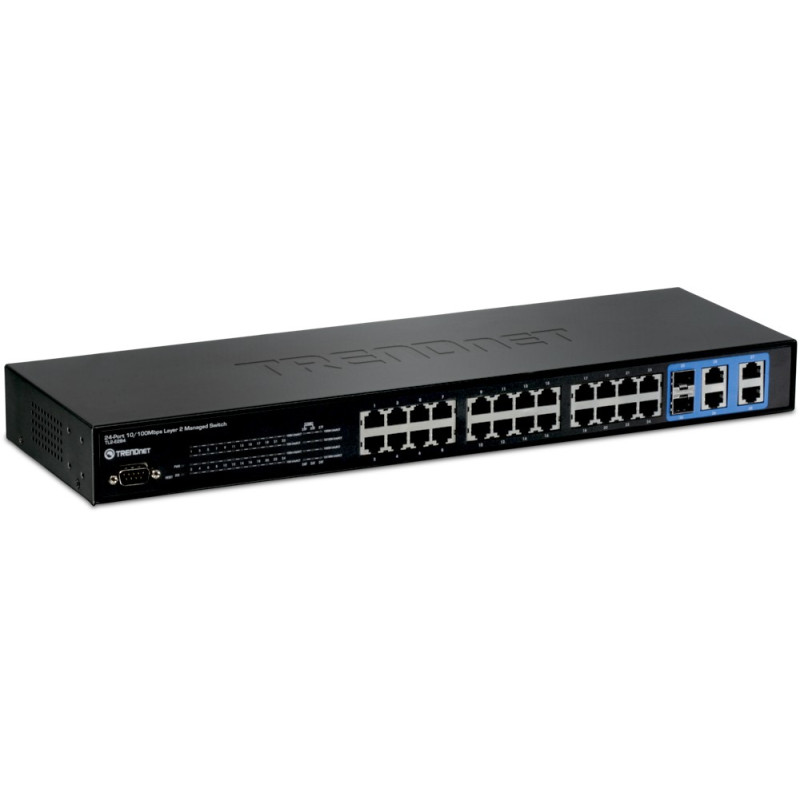

Trendnet TL2-E284
24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports and 2 Shared Mini-GBIC Slots
- SNMP (v1, v2c, v3), 802.1X, RSTP, and MSTP support.
- 24 x 10/100Mbps Auto- MDIX ports.
- 4 x Gigabit ports, 2 x shared SFP slots, and 1 x RS-232 console port.
- 12.8Gbps switching capacity.
- Supports Port Trunking, Mirroring, IGMP, VLAN, RMON, QoS, STP, and more.
The 24-Port 10/100Mbps Layer 2 Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots, model TL2-E284, provides a reliable foundation for a highly scalable managed network.
The TL2-E284 features a 12.8Gbps switch fabric, 802.1X authentication, SNMP v3, and Multiple Spanning Tree (MSTP) support.
Built-in Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks to backbone switching or servers. Configure the switch using your choice of Telnet, HyperTerminal, SNMP, or a Browser. View statistics captured for 17 unique switching parameters. Additional management features such as Port Trunking, IGMP snooping, Static and Dynamic VLAN, Load Balancing, RMON, QoS, and RSTP allow administrators to effectively manage departmental work groups.
- 24 x 10/100Mbps Auto- MDIX ports.
- 4 x Gigabit ports, 2 x shared SFP slots, and 1 x RS-232 console port.
- 12.8Gbps switching capacity.
- Supports Port Trunking, Mirroring, IGMP, VLAN, RMON, QoS, STP, and more.
The 24-Port 10/100Mbps Layer 2 Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots, model TL2-E284, provides a reliable foundation for a highly scalable managed network.
The TL2-E284 features a 12.8Gbps switch fabric, 802.1X authentication, SNMP v3, and Multiple Spanning Tree (MSTP) support.
Built-in Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks to backbone switching or servers. Configure the switch using your choice of Telnet, HyperTerminal, SNMP, or a Browser. View statistics captured for 17 unique switching parameters. Additional management features such as Port Trunking, IGMP snooping, Static and Dynamic VLAN, Load Balancing, RMON, QoS, and RSTP allow administrators to effectively manage departmental work groups.
Data sheet
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Certification
- CE, FCC
- Colour of product
- Black
- Connectivity LEDs
- Yes
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Dimensions (WxDxH)
- 440 x 140 x 44 mm
- Ethernet LAN (RJ-45) ports quantity
- 24
- Fiber ethernet cabling technology
- 1000BASE‑LX,1000BASE‑SX
- Fiber optic connector
- XFP
- Input voltage
- –36 - –72 V
- MAC address table
- 96000 entries
- Management
- Layer 2 Managed
- Maximum data transfer rate
- 96 Gbit/s
- Mounting
- Rackmount
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- PoE
- No
- Ports quantity
- 24
- Power consumption (typical)
- 16.8 W
- Power over Ethernet (PoE) support
- No
- RJ45 Ports Qty
- 28
- Security algorithms
- 802.1x RADIUS,SSH
- Security algorithms supported
- SSH, 802.1x RADIUS
- SFP Ports Qty
- 2
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -10 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switch Speed
- 10/100
- Switching capacity
- 993.6 Gbps
- Transmission distance (max)
- 80 km
- Weight
- 2000 g
Specific References
- EAN13
- 0710931508017
