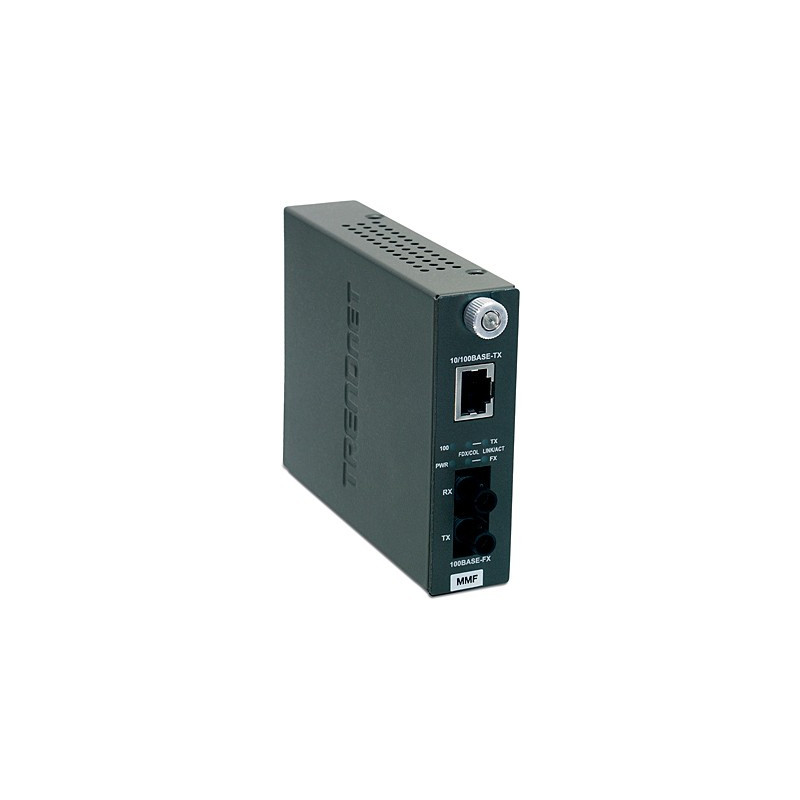

Trendnet TFC-110MST
100Base-TX to 100Base-FX Multi Mode ST Fiber Converter
- ST type multi-mode fiber port connects over distances of up to 2km
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
The TFC-110MST Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode ST-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (ST-Type).
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
The TFC-110MST Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode ST-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (ST-Type).
Data sheet
- Auto MDI/MDI-X
- Yes
- Certification
- FCC,CE
- Colour of product
- Grey
- Connectivity technology
- Wired
- Data transfer rate (max)
- 200 Mbit/s
- Dimensions (WxDxH)
- 120 x 88 x 25 mm
- Ethernet LAN (RJ-45) ports quantity
- 1
- Fiber optic connector
- ST
- Input voltage
- 100-240 V
- Maximum transfer distance
- 900 m
- Networking standards
- IEEE 802.3,IEEE 802.3u
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Power consumption (typical)
- 1.8 W
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -25 - 70 °C
- Storage temperature range (T-T)
- -25 - 70 °C
- Wavelength
- 1300 nm
- Weight
- 354 g
Specific References
- EAN13
- 0710931504101
