Trendnet TFC-1000MGA

Name: Trendnet TFC-1000MGA
Brand: Trendnet
SKU: TFC-1000MGA

1xRJ-45, 1xMini-GBIC, Black

Out of Stock

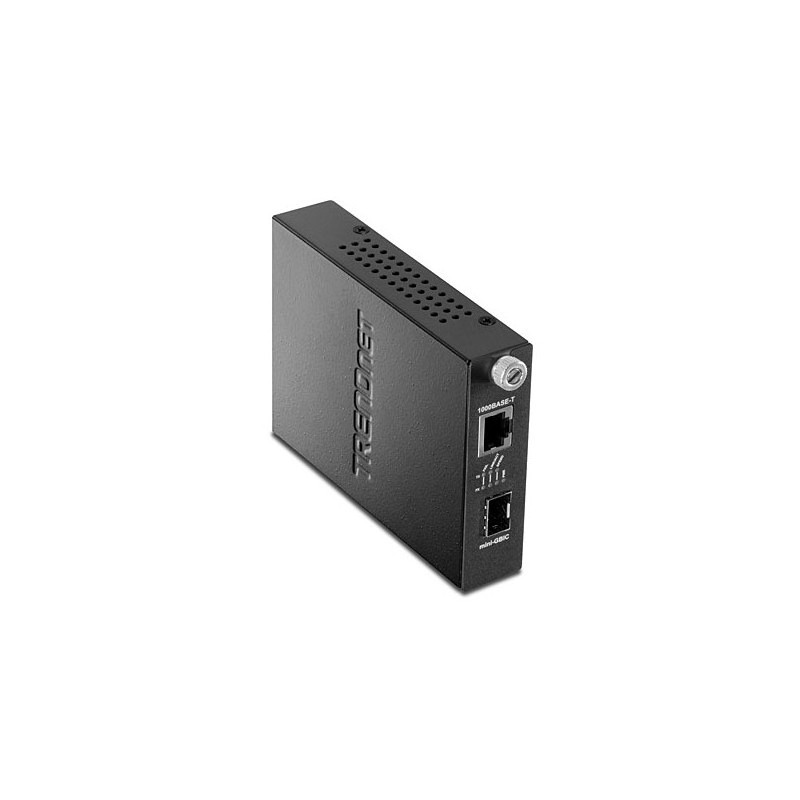

TRENDnet’s 100/1000BASE-T to SFP Media Converter, model TFC-1000MGA, is a reliable Plug-and-Play Fiber-to-Ethernet converter in a compact form factor. This versatile fiber converter supports both Multi-Mode (SX) and Single-Mode (LX) fiber standards for transmission distances of up to 80 kilometers (50 miles).

The Mini-GBIC slot and Gigabit Ethernet port Auto-Negotiate between 100 and 1000Mbps transmission speeds. Diagnostic LEDs on the front of the converter convey device status. Control Auto-Negotiation (Forced/Auto-Negotiation) and Link Loss Return (Enable/Disable) with an internal dip-switch. This sturdy metal housed converter can be installed as a standalone unit and is compatible with TRENDnet’s expandable 16-Bay Fiber Converter Chassis System, model TFC-1600

- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards

- 1 x 10/100/1000Base-T RJ-45 port

- 1 x 100Base-FX/1000Base-SX/LX Mini-GBIC slot

- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)

- Support LLCF (Link Loss Carry Forward, Link Pass Through)

- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600

- Status LED indicators for Power, Link/Activity and Fail

- Wall mountable

- Compatible with TRENDnet’s 16-Bay Fiber Converter Chassis System, model TFC-1600 (holds up to 16 TFC series Media Converters)

Brand Trendnet

Data sheet

Certification: CE, FCC
Colour of product: Black,Silver
Connectivity technology: Wired
Data transfer rate (max): 1000 Mbit/s
DC-in jack: Yes
Dimensions (WxDxH): 120 x 88 x 25 mm
Ethernet LAN (RJ-45) ports quantity: 1
Fiber optic connector: XFP
Input current: 9/4.5 A
Input voltage: 5 V
Maximum transfer distance: 220 m
Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating temperature (T-T): 8 - 35 °C
Operating temperature range (T-T): 0 - 40 °C
Power consumption (typical): 9W
Source data-sheet: Icecat.biz
Storage temperature (T-T): -25 - 70 °C
Storage temperature range (T-T): -25 - 70 °C
Weight: VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
