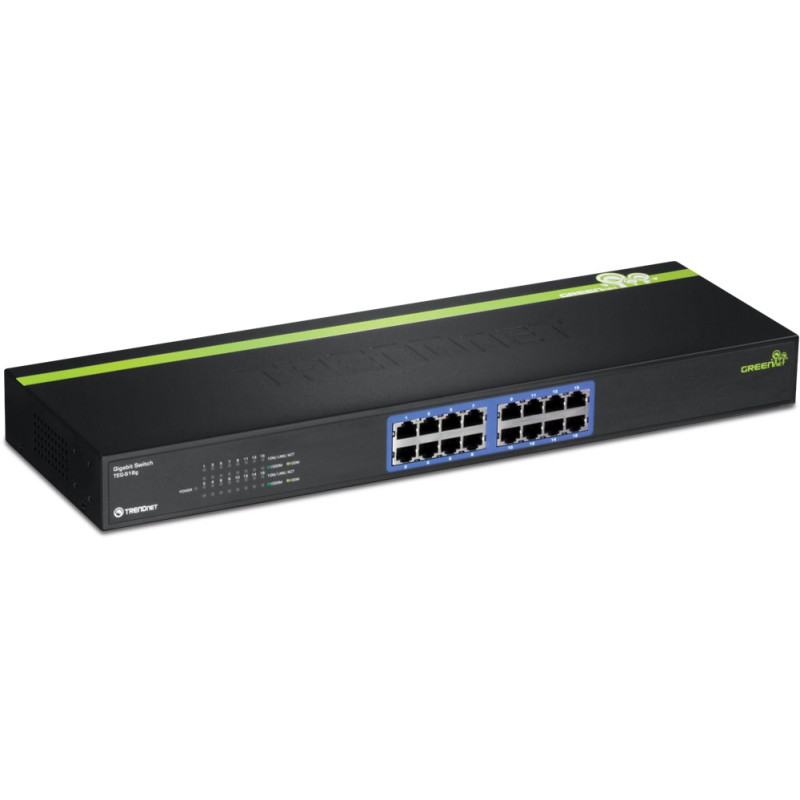

Trendnet TEG-S16G
16-Port Gigabit GREENnet Switch
- GREENnet technology reduces power consumption by up to 70%
- 16 x Gigabit Auto-MDIX RJ-45 ports
- Sturdy rackmount metal switch with built in power supply
- 32Gbps forwarding capacity
The 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*.
GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 32Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
- 16 x Gigabit Auto-MDIX RJ-45 ports
- Sturdy rackmount metal switch with built in power supply
- 32Gbps forwarding capacity
The 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*.
GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 32Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
Data sheet
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Colour of product
- Black
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 440 x 140 x 45 mm
- Ethernet LAN (RJ-45) ports quantity
- 16
- Housing material
- Zinc steel
- Input frequency
- 50-60 Hz
- Input voltage
- 10-240 V
- MAC address table
- 96000 entries
- Management
- Unmanaged
- Maximum data transfer rate
- 96 Gbit/s
- Mounting
- Rackmount
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
- Non-operating relative humidity (non-condensing)
- 0 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- PoE
- No
- Ports quantity
- 16
- Power consumption (typical)
- 7.2 W
- Power over Ethernet (PoE) support
- No
- RJ45 Ports Qty
- 16
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -10 - 70 °C
- Supported data transfer rates
- 10, 20, 100, 200, 2000
- Supported network protocols
- CSMA /CD, Star
- Switch Speed
- Gigabit
- Switching capacity
- 993.6 Gbps
- Weight
- 1600 g
Specific References
- EAN13
- 0710931610239
