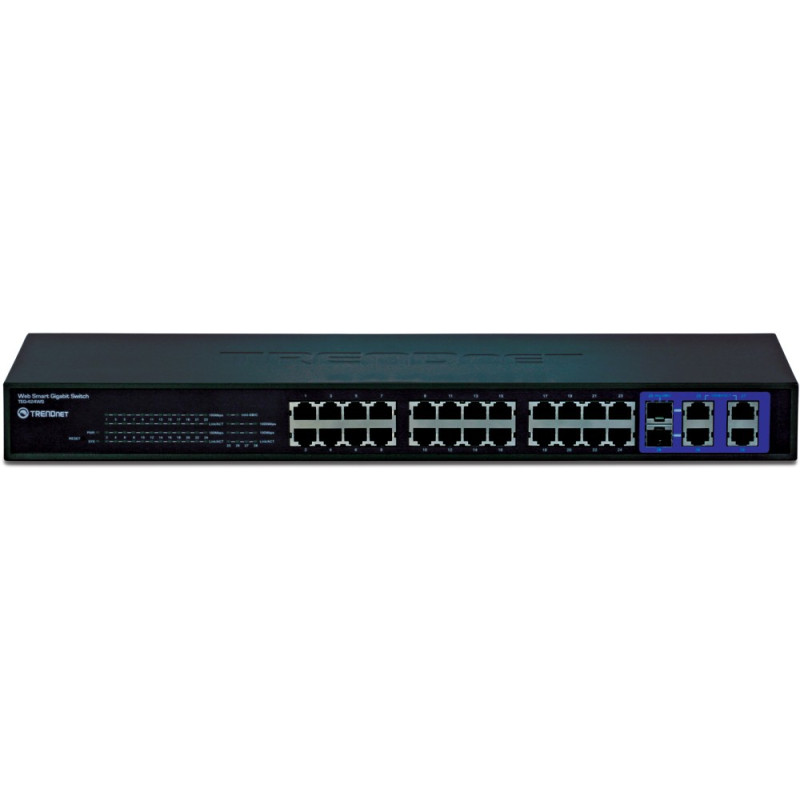

Trendnet TEG-424WS 24-Port 10/100 Mbps Web Smart Switch

Trendnet TEG-424WS

24-Port 10/100Mbps Web Smart Switch w/ 4 Gigabit Ports and 2 Mini-GBIC Slots
Out of Stock
Reference: TEG-424WS

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The 24-Port 10/100Mbps Web Smart Switch with 4 Gigabit Ports and 2 Mini-GBIC Slots (model TEG-424WS) delivers a 12.8Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks.



SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared Mini-GBIC slots and network servers and switches using the Gigabit RJ-45 ports. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.
Trendnet

Data sheet

Basic switching RJ-45 Ethernet ports quantity
24
Certification
CE, FCC
Data transfer rate
10 Mbit/s
Dimensions (WxDxH)
440 x 140 x 44 mm
Ethernet LAN (RJ-45) ports quantity
24
MAC address table
96000 entries
Management
Smart Managed
Management protocols
CSMA/CD, Star
Maximum data transfer rate
96 Gbit/s
Mounting
Rackmount
Networking features
Yes
Networking standards
Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Non-operating relative humidity (non-condensing)
10 - 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
PoE
No
Ports quantity
30
Power consumption (typical)
19 W
Power over Ethernet (PoE) support
No
Power requirements
100-240V AC, 50/60Hz
RJ45 Ports Qty
28
Security features
IEEE 802.1X
SFP Ports Qty
2
Source data-sheet
Icecat.biz
Stackable
No
Storage relative humidity (H-H)
5 - 90 %
Storage relative humidity range
5 - 90 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-10 - 70 °C
Switch layer
L7
Switch Speed
10/100
Weight
2100 g

Specific References

EAN13
0710931610116
