Trendnet Micro-Bluetooth USB Adapter
Micro-Bluetooth USB Adapter

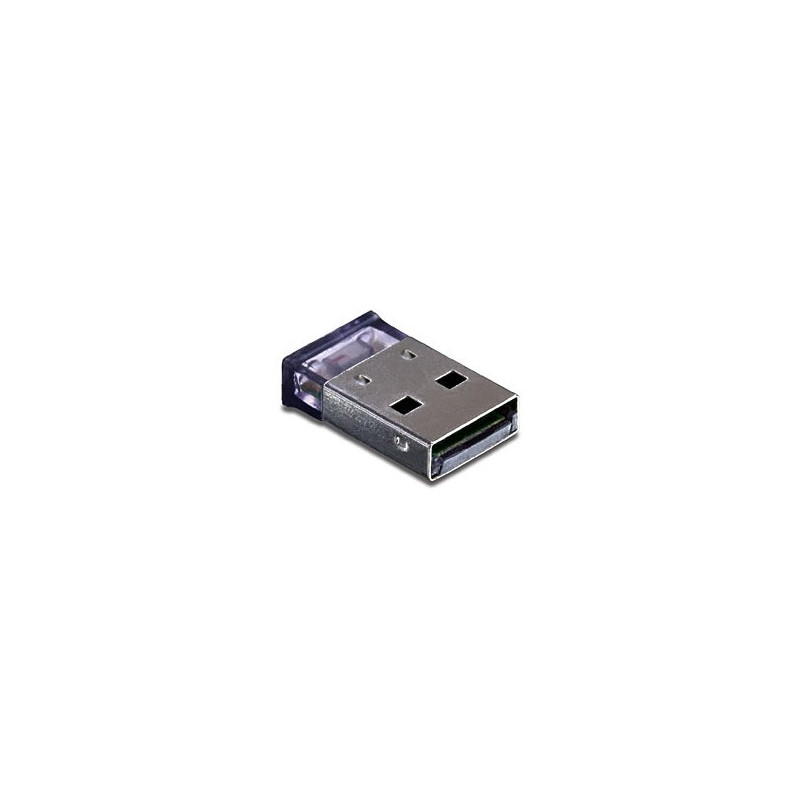

The Micro Bluetooth USB Adapter (Model TBW-106UB) networks Bluetooth enabled devices such as cell phones, keyboards and headsets.
The size of a penny, simply plug this micro-device into an available USB port on your laptop or desktop and experience exceptional Bluetooth connectivity.
Connect as many as 7 Bluetooth devices at distances of up to 100m (328ft). Enhanced Data Rate (EDR) technology transfers your data quickly. Adaptive Frequency Hopping (AFH) minimizes interference from other wireless technologies. This compact device also provides secure encrypted data communication.
- This micro-device is about the size of a penny
- Turn your laptop or desktop computer into a Bluetooth enabled workstation
- Connect Bluetooth enabled devices such as cell phones and headsets
- Experience crystal clear sound quality for distances of up to 100m (328ft)
The size of a penny, simply plug this micro-device into an available USB port on your laptop or desktop and experience exceptional Bluetooth connectivity.
Connect as many as 7 Bluetooth devices at distances of up to 100m (328ft). Enhanced Data Rate (EDR) technology transfers your data quickly. Adaptive Frequency Hopping (AFH) minimizes interference from other wireless technologies. This compact device also provides secure encrypted data communication.
- This micro-device is about the size of a penny
- Turn your laptop or desktop computer into a Bluetooth enabled workstation
- Connect Bluetooth enabled devices such as cell phones and headsets
- Experience crystal clear sound quality for distances of up to 100m (328ft)
Data sheet
- Bundled software
- Bluetooth IVT
- Certification
- CE, FCC, RoHS
- Compatible operating systems
- Win Vista/98SE/ME/2000/XP
- Connectivity technology
- Wireless
- Data transfer rate (max)
- 3 Mbit/s
- Depth
- 12 mm
- Dimensions (W x D x H)
- 19 x 11.9 x 5.59 mm (0.75 x 0.47 x 0.22 ")
- Dimensions (WxDxH)
- 19 x 12 x 5.5 mm
- Frequency band
- 2.4 - 2.4833 GHz
- Height
- 990mm
- Host interface
- x8 PCI-e 2.0
- Input voltage
- 5 V
- Interface
- USB 2.0/1.1
- Mac compatibility
- No
- Maximum operating distance
- 95 m
- Modulation
- GFSK
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption
- 95 mA
- Receiver sensitivity
- 82dBm
- RX power consumption
- 45 mA
- Security algorithms supported
- 128-bit
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -10 - 65 °C
- Storage temperature range (T-T)
- -10 - 65 °C
- Supported network protocols
- AFH, ESCO
- Transmitter output power
- 13 dBm
- TX power consumption
- 136 mA
- Weight
- 1.8 g
- Width
- 19 mm
Specific References
- EAN13
- 0710931503579
Micro-Bluetooth USB Adapter
