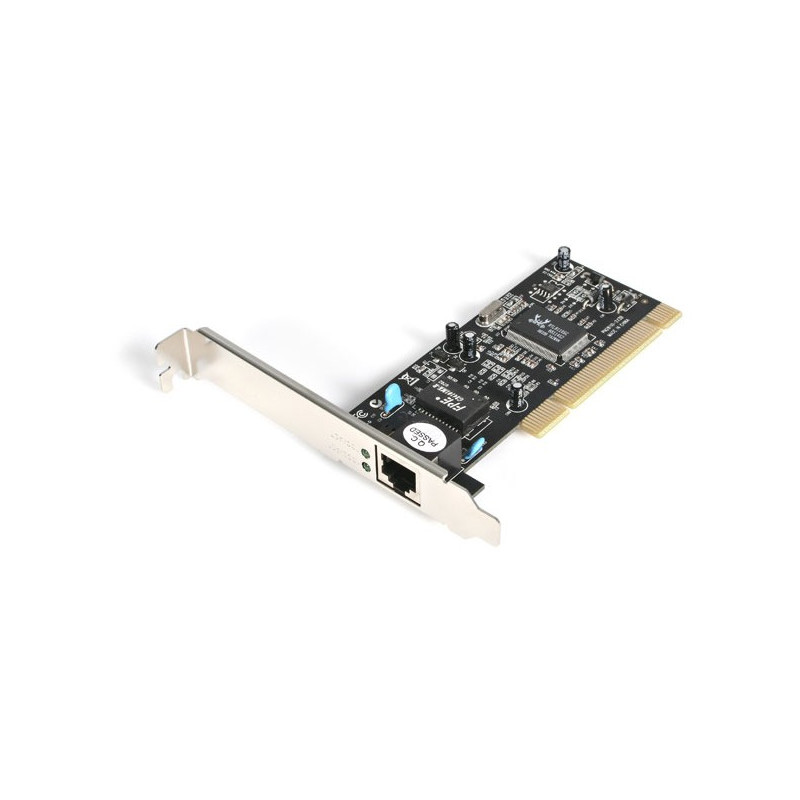

StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card

Name: StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
Brand: StarTech.com
SKU: ST1000BT32

Out of Stock

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, 98SE, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

The StarTech.com Advantage

- Add feature rich Gigabit networking through a PCI slot, suitable for a desktop, workstation or sever use
- Dual profile design to fit into Full or Low Profile/small form factor (SFF) systems
- Backed by a StarTech.com lifetime warranty and free lifetime technical support

Data sheet

Certification: CE, FCC
Chipset: Realtek - RTL8110SC
Compatibility: PC
Compatible operating systems: Windows 98SE/ ME/ NT/ 2000/ XP(32/64 bit)/ Server 2003(32/64 bit)/ Vista(32/64 bit)/ 7(32/64 bit)/ Server 2008 R2, Netware Server 5.x, Netware ODI f/ DOS, Linux & Unix
Compliance industry standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.11u, PCI 2.1, PCI 2.2
Connectivity technology: Wired
Data transfer rate (max): 1000 Mbit/s
Depth: 123 mm
Ethernet LAN connection: Yes
Height: 990mm
Host interface: x8 PCI-e 2.0
I/O ports: 1 - RJ45 F
Interface: XFP
LED indicators: 10/100/1000 Mbits/sec Link/Activity
Mac operating systems supported: Mac OS X 10.4 Tiger
Mean time between failures (MTBF): 36000 h
Networking standards: IEEE 802.11u,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H): 10 - 95 %
Operating temperature (T-T): 8 - 35 °C
Operating temperature range (T-T): 0 - 55 °C
Package weight: 998 g
Package width: 985.6 mm
Ports quantity: 1
RoHS compliance: Yes
Source data-sheet: Icecat.biz
Supported data transfer rates: x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported network protocols: WEP, WPA/WPA2-PSK
Weight: 54 g
Width: 993 mm
Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window
