StarTech.com StarTech.com 1000 Mbps Gigabit Ethernet MM SC Fiber PCI Express Card

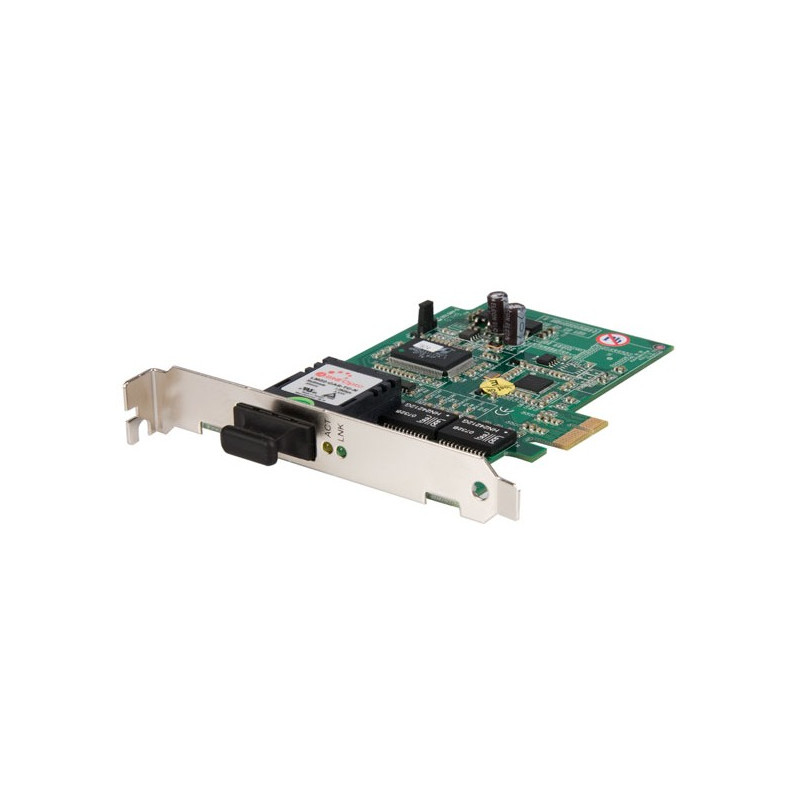

1000 Mbps Gigabit Ethernet Multi Mode SC Fiber PCI Express Card - 550m
Add a gigabit Multi-mode SC fiber port to your system through PCI Express
The PEX1000MMSC 1000 Mbps Gigabit Ethernet Multi Mode SC Fiber PCI Express Card - 550m offers the perfect ""Fiber-to-the-desk"" solution, turning an available PCIe slot into an SC Multimode fiber connection. A simple solution for connecting a computer directly to a high-speed fiber network, the Fiber Gigabit Ethernet Adapter card is perfectly suited to high bandwidth applications with support for Full Duplex operation and gigabit transfer speeds. Ideal for secure network setups, the PEX1000MMSC offers a direct fiber connection which is not susceptible to electronic interference like standard RJ45 networks. Backed by a StarTech.com 2-year warranty and free lifetime technical support."
* Retain full gigabit speeds to a remote terminal over long distances for maximum throughput
* Ideal for secure setups - Direct fiber means no electronic interference like standard RJ45 network cards
* True gigabit speeds via PCI express, unlike similar PCI fiber cards
The PEX1000MMSC 1000 Mbps Gigabit Ethernet Multi Mode SC Fiber PCI Express Card - 550m offers the perfect ""Fiber-to-the-desk"" solution, turning an available PCIe slot into an SC Multimode fiber connection. A simple solution for connecting a computer directly to a high-speed fiber network, the Fiber Gigabit Ethernet Adapter card is perfectly suited to high bandwidth applications with support for Full Duplex operation and gigabit transfer speeds. Ideal for secure network setups, the PEX1000MMSC offers a direct fiber connection which is not susceptible to electronic interference like standard RJ45 networks. Backed by a StarTech.com 2-year warranty and free lifetime technical support."
* Retain full gigabit speeds to a remote terminal over long distances for maximum throughput
* Ideal for secure setups - Direct fiber means no electronic interference like standard RJ45 network cards
* True gigabit speeds via PCI express, unlike similar PCI fiber cards
Data sheet
- Chipset
- Realtek RTL8168B, Marvell 88E1111
- Compatible operating systems
- Windows XP, Vista
Mac
Linux - Compliance industry standards
- IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/100Base-FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/1000Base-LX, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.3ad
- Connectivity technology
- Wired
- Data transfer rate (max)
- 1000 Mbit/s
- Depth
- 109 mm
- Ethernet LAN connection
- Yes
- Height
- 990mm
- Host interface
- PCI-E
- I/O ports
- 1x Fiber Optic SC Female
- Maximum operating distance
- 550 m
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 45 °C
- Package height
- 174 mm
- Package length
- 221.00 mm
- Package weight
- 680 g
- Package width
- 50 mm
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -10 - 70 °C
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
- Width
- 83 mm
Specific References
- EAN13
- 0065030832670
1000 Mbps Gigabit Ethernet Multi Mode SC Fiber PCI Express Card - 550m
