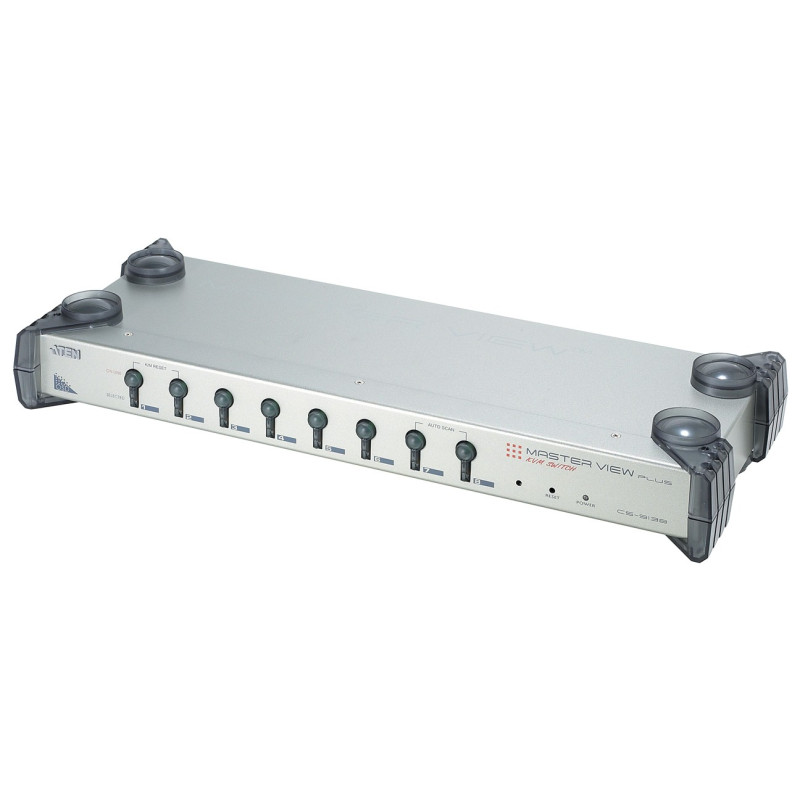

Aten CS9138 8-Port PS/2 KVM Switch
  • Aten CS9138 8-Port PS/2 KVM Switch
  • Aten CS9138 8-Port PS/2 KVM Switch
  • Aten CS9138 8-Port PS/2 KVM Switch

Aten CS9138

8-Port USB - PS/2 VGA KVM Switch
Out of Stock
Reference: CS9138

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Features



- One PS/2 console controls 8 computers.

- Cascadable up to 3 levels - provides up to 512 computers.

- Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).

- Keyboard and mouse emulation for error free booting.

- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.

- OSD automatically adjusts to resolution changes.

- Auto Scan function to monitor computer operation.

- Superior video quality: up to 1920 x 1440; DDC2B.

- Available in silver and black.

- Special design for easy stacking.

- Rack mountable in 19" (1U) system rack.

- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.



Package Contents



- 1x 8-Port PS/2 KVM Switch

- 1x 0AD6-1909-03EG Power Adapter

- 1x Rack Mount Kit

- 1x User Instructions

Data sheet

AC adapter included
Yes
Audio connections
No
Built-in display
No
Colour of product
Black
Compatible operating systems
Windows 2000, XP, Vista;
Linux;
FreeBSD
DC-in jack
Yes
Depth
170 mm
Height
990mm
Keyboard port type
PS/2
Material
Zinc steel
Maximum resolution
1920 x 1440 pixels
Mouse port type
PS/2
Number of computers controlled
8
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 50 °C
Power consumption (typical)
1.08 W
PS/2 ports quantity
18
Scan interval
3 s
Source data-sheet
Icecat.biz
Storage temperature (T-T)
-20 - 60 °C
Storage temperature range (T-T)
-20 - 60 °C
VGA (D-Sub) ports quantity
9
Video port type
VGA
Weight
2850 g
Width
450 mm

Specific References

EAN13
4710423771000
