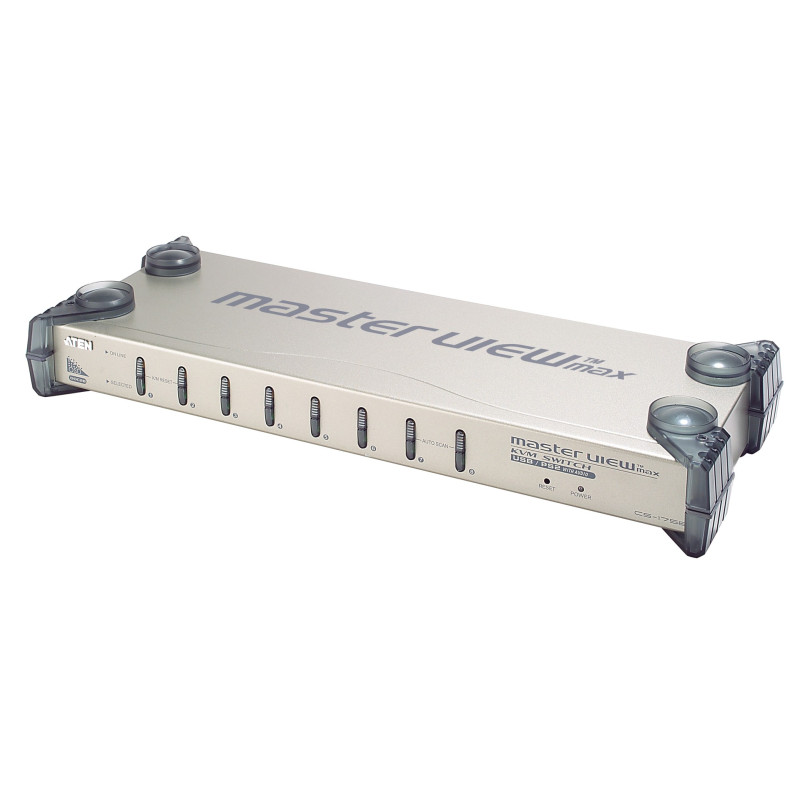

Aten CS1758
8-Port USB - PS/2 VGA KVM Switch with Audio
Features
- One USB console controls 8 computers.
- Cascadable up to 3 levels - provides up to 512 computers.
- Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
Package Contents
- 1x 8-Port PS/2-USB KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD6-1005-10EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
- One USB console controls 8 computers.
- Cascadable up to 3 levels - provides up to 512 computers.
- Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
Package Contents
- 1x 8-Port PS/2-USB KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD6-1005-10EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
Data sheet
- Colour of product
- White
- Compatible operating systems
- -Windows 2000/XP/Vista
-Linux
-Mac
-Unix
-SUN
-FreeBSD. - Dimensions (WxDxH)
- 170 x 450 x 67 mm
- Headphone outputs
- 1
- Keyboard port type
- USB
- Mouse port type
- USB
- Number of computers controlled
- 8
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Ports quantity
- Range, depending on model
- Power consumption (typical)
- 3.4 W
- Power supply type
- 1 x DC Jack
- Source data-sheet
- Icecat.biz
- Speaker/ headphone/ line-out jack
- 1
- Storage relative humidity (H-H)
- 0 - 80 %
- Storage relative humidity range
- 0 - 80 %
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Video port type
- VGA
- Weight
- 2720 g
Specific References
- EAN13
- 4710423770522
