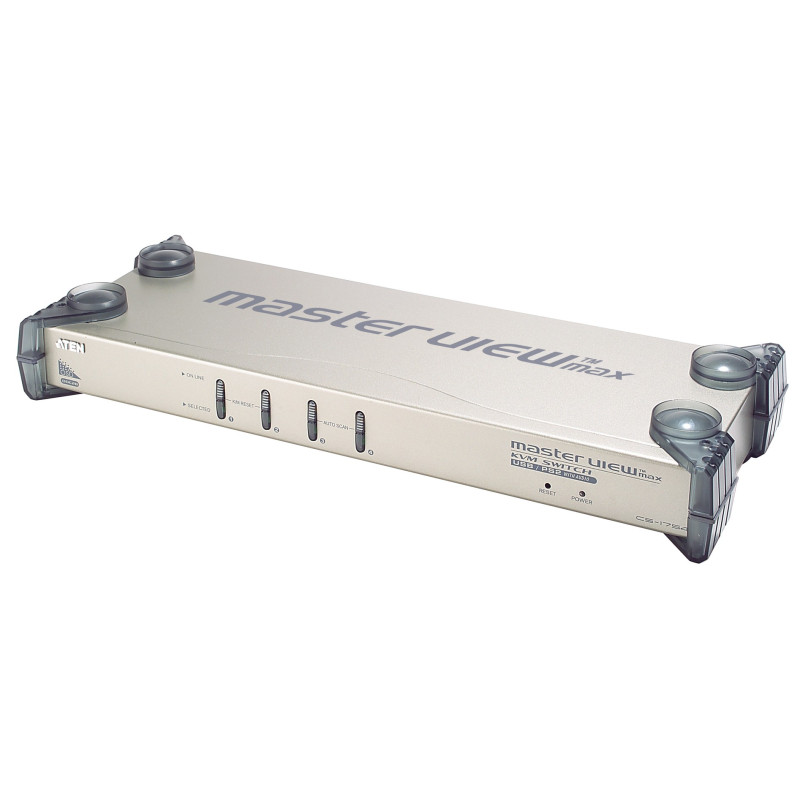

Aten CS1754
4-Port USB - PS/2 VGA KVM Switch with Audio
Features
- One USB console controls 4 computers.
- Cascadable up to 3 levels - provides up to 64 computers.
- Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
Package Contents
- 1x 4-Port PS/2-USB KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD6-1005-10EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
- One USB console controls 4 computers.
- Cascadable up to 3 levels - provides up to 64 computers.
- Dual InterfaCEsupports computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
Package Contents
- 1x 4-Port PS/2-USB KVM Switch
- 1x Firmware Upgrade Cable
- 1x 0AD6-1005-10EG Power Adapter
- 1x Rack Mount Kit
- 1x User Instructions
Data sheet
- AC adapter included
- Yes
- Built-in display
- No
- Colour of product
- Black
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Depth
- 170 mm
- Ethernet LAN connection
- No
- Height
- 990mm
- I/O ports
- 1x RJ11
- Keyboard port type
- USB
- Material
- Zinc steel
- Maximum resolution
- 2048 x 1536 pixels
- Mouse port type
- USB
- Number of computers controlled
- 4
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating relative humidity range
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Package dimensions (WxDxH)
- 235 x 552 x 121 mm
- Package weight
- 3800 g
- Power consumption (typical)
- 2.75 W
- Power requirements
- DC 5V
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- VGA (D-Sub) ports quantity
- 5
- Video port type
- VGA
- Weight
- 2640 g
- Width
- 450 mm
Specific References
- EAN13
- 4710423770515
4-Port USB - PS/2 VGA KVM Switch with Audio
