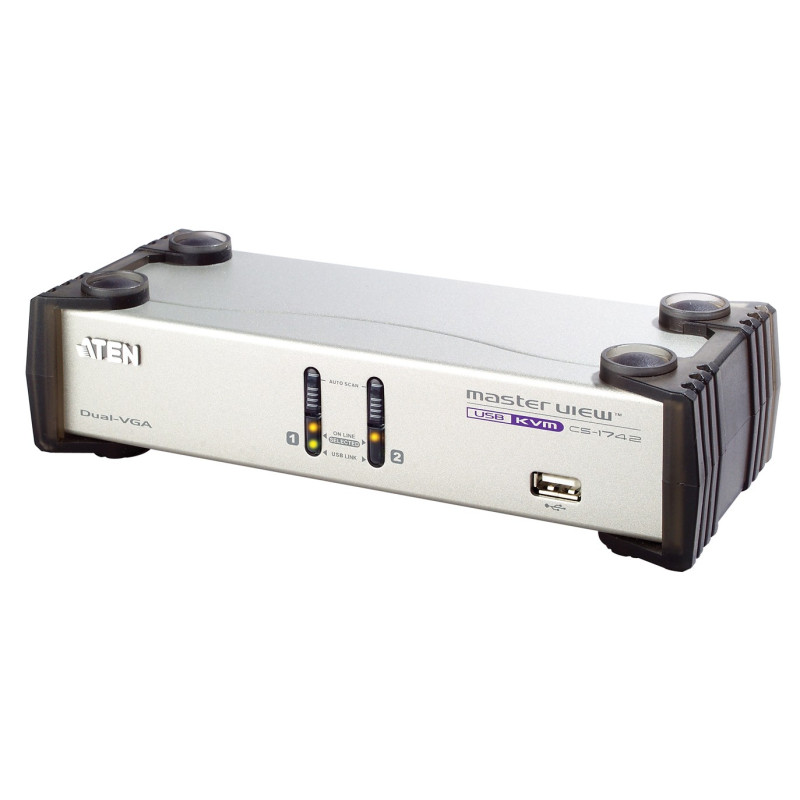

Aten CS1742
2-Port USB Dual-View VGA KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
Features
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 2-Port USB Dual-View KVMP™ Switch
- 2x 2L-5202A-1 KVM Cable (Audio/Video)
- 2x 2L-5202U USB KVM Cables (USB/Video)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
- Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
- 2 port USB Hub built in
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradeable
- SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.
Package Contents
- 1x 2-Port USB Dual-View KVMP™ Switch
- 2x 2L-5202A-1 KVM Cable (Audio/Video)
- 2x 2L-5202U USB KVM Cables (USB/Video)
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x Firmware Upgrade Cable
- 1x User Instructions
Data sheet
- Case or master carton dimensions (W x D x H)
- 320.7 x 292.1 x 248.4 mm
- Colour of product
- White
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 75 x 200 x 42 mm
- I/O ports
- 2 x USB Type A Female
2 X HDB15 Female
1 x Audio
1 x Earphone Jack Female
1 x Microphone Jack Female
1 x RJ11 Socket - Keyboard port type
- USB
- Mouse port type
- USB
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Package dimensions (WxDxH)
- 222.2 x 98.4 x 266.7 mm
- Package height
- 266.7 mm
- Package weight
- 2176.8 g
- Package width
- 222.2 mm
- Packaging depth
- 98.4 mm
- Packaging height
- 266.7 mm
- Packaging width
- 222.2 mm
- Ports quantity
- 2
- Power consumption (typical)
- 1.25 W
- Power requirements
- DC 5V
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Video port type
- VGA
- Weight
- 1600 g
Specific References
- EAN13
- 4710423773080
