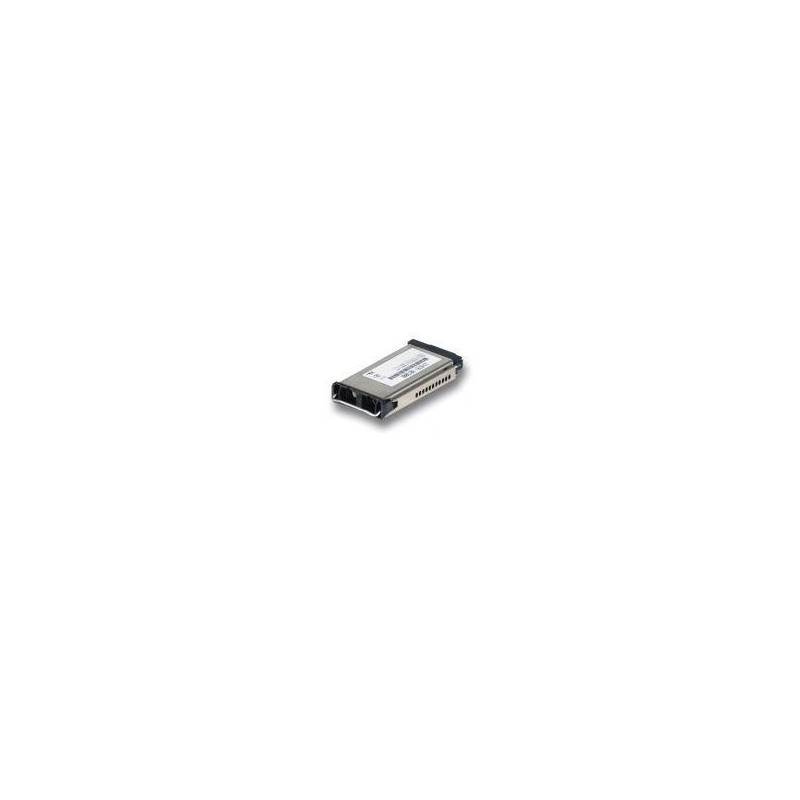

Allied Telesis AT-G8SX GBIC GigaBit Interface Converter
AT-G8SX GBIC GigaBit Interface Converter
Industry Standard
The AT-G8 series offers the latest industry standards in flexible, full-duplex Gigabit Ethernet connectivity.These hot-swappable, fiber
interfaces simply plug into a GBIC slot on Allied Telesyn GBIC compatible products. Configurations can be optimized to meet varied
distance and service requirements.
Options
The AT-G8 series offers short-haul and longhaul solutions. From the inexpensive AT-G8SX-01 to the far-reaching AT-G8LX70, you have the option to extend your network to the distances that meet your performance needs.The CWDM version allows you to take advantage of the CWDM technology in an existing network infrastructure, maximizing fiber efficiency.
Product Compatibility
The AT-G8 series GBICs are compatible with all of the Allied Telesyn range of products that support GBIC uplink connections.
The AT-G8 series offers the latest industry standards in flexible, full-duplex Gigabit Ethernet connectivity.These hot-swappable, fiber
interfaces simply plug into a GBIC slot on Allied Telesyn GBIC compatible products. Configurations can be optimized to meet varied
distance and service requirements.
Options
The AT-G8 series offers short-haul and longhaul solutions. From the inexpensive AT-G8SX-01 to the far-reaching AT-G8LX70, you have the option to extend your network to the distances that meet your performance needs.The CWDM version allows you to take advantage of the CWDM technology in an existing network infrastructure, maximizing fiber efficiency.
Product Compatibility
The AT-G8 series GBICs are compatible with all of the Allied Telesyn range of products that support GBIC uplink connections.
Data sheet
- Cabling technology
- 1000SX
- Data transfer rate (max)
- 1000 Mbit/s
- Fiber type
- 62.5/125 µm
- Interface
- SC
- Maximum transfer distance
- 500 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 70 °C
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 85 °C
- Wavelength
- [1250 nm – 1600 nm]
Specific References
- EAN13
- 7670351591194
