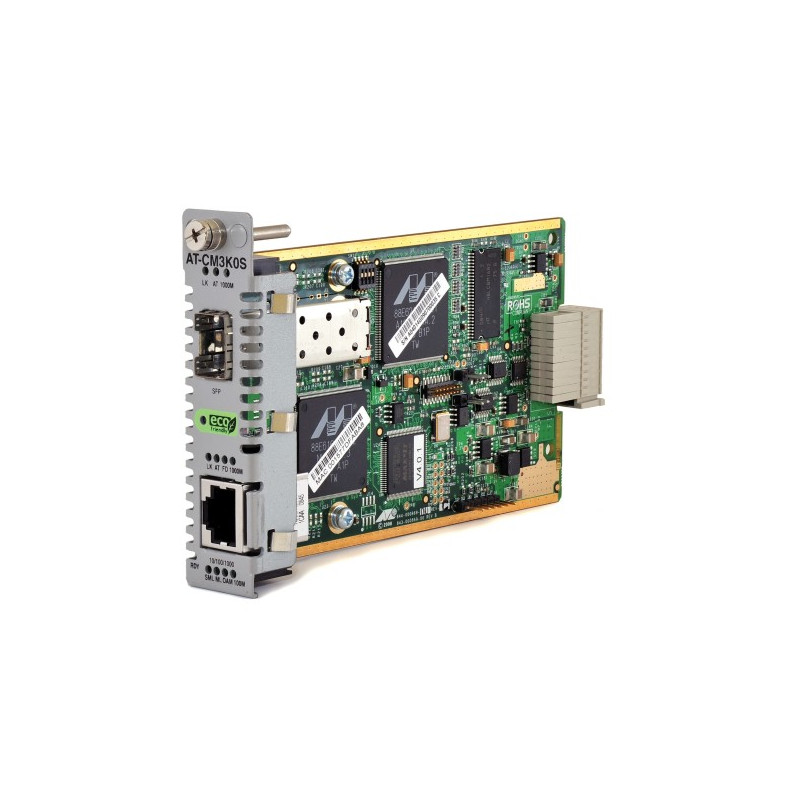

Allied Telesis AT-CM3K0S network media converter

Allied Telesis AT-CM3K0S

AT-CM3K0S - 10/100/1000T to 100/1000X SFP Converteon media and rate converter line card with OAM and Jumbo Frame support, 6 W
Out of Stock
Reference: AT-CM3K0S

Require Project Pricing?

Click here to email your parts list and we will send you a quote
This media and rate converter line card features a 10/100/1000T twisted pair port and an optical SFP port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet or Gigabit Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CM3K0S has a SFP port supporting both Fast Ethernet and Gigabit operation, allowing a choice of multi/single mode, dual/single fiber SFP modules.



- Converts speed as well as media type

- Extends Ethernet and Fast Ethernet and Gigabit Ethernet networks

- Supports IEEE 802.3ah ‘Ethernet in the First Mile’

- Support MissingLink™ and Smart MissingLink™

- Transparent to IEEE 802.1Q VLAN packets

- Jumbo Frame Support

- Rate Limiting

- Low Power Mode

- Supports Dying Gasp

- Automatic address learning and aging

- Managed, or Unmanaged operation

- Auto MDI/MDI-X

- Auto-Negotiation (IEEE 802.3u-compliant)

- Store and forward data packet handling

- Supports 100 and 1000Mbps SFPs

- System and port LEDs

- Line card for all Converteon™ series chassis

- Limited lifetime warranty
Allied Telesis

Data sheet

Cabling technology
10/100/1000T
Certification
FCC, EN-55022, VCCI, C-Tick, CE.
Compliance industry standards
IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah
Connectivity technology
Wired
Data transfer rate (max)
1000 Mbit/s
Dimensions (WxDxH)
22 x 73 x 130 mm
MAC address table
96000 entries
Mean time between failures (MTBF)
1530000 h
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
5 - 95 %
Operating relative humidity range
5 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Packet transfer speed
14880, 148800, 1488000 pps
Power consumption (typical)
9W
Safety
UL 60950-1 (cULUS), EN-60950-1 (TUV), EN-60825
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage relative humidity range
5 - 95 %
Storage temperature (T-T)
-25 - 70 °C
Storage temperature range (T-T)
-25 - 70 °C
Weight
113 g

Specific References

EAN13
7670351891782
