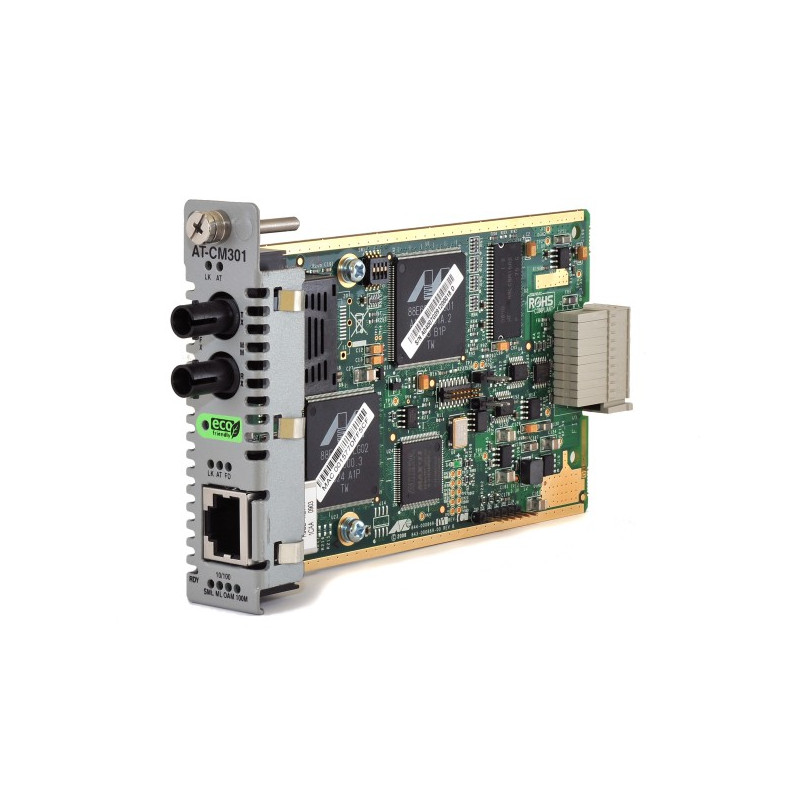

Allied Telesis AT-CM301
AT-CM301 - 10/100TX, 100FX (ST, 2km) Converteon™ media and rate converter line card with OAM and Jumbo Frame support, 5.5 W
This media and rate converter line card features a 10/100TX twisted pair port and a 100FX optical port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CM301 has a multi mode fiber ST connector and operates up to 2km.
Data sheet
- Cabling technology
- 10/100TX, 100FX
- Certification
- FCC, EN-55022, VCCI, C-Tick, CE.
- Colour of product
- Silver
- Compatibility
- PC
- Compliance industry standards
- IEEE 802.3u, IEEE 802.3ah
- Connectivity technology
- Wired
- Data transfer rate (max)
- 100 Mbit/s
- Depth
- 73 mm
- Dimensions (WxDxH)
- 22 x 73 x 130 mm
- Ethernet LAN connection
- Yes
- Height
- 130 mm
- Host interface
- PC Card
- Interface
- XFP
- LED indicators
- LAN,Power
- Maximum operating distance
- 95 m
- Mean time between failures (MTBF)
- 1500000 h
- Networking features
- Yes
- Networking standards
- IEEE 802.1Q,IEEE 802.3ah,IEEE 802.3u
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Ports quantity
- 1
- Power consumption (typical)
- 5.5 W
- Safety
- UL 60950-1 (cULUS), EN-60950-1 (TUV), EN-60825
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- -25 - 70 °C
- Storage temperature range (T-T)
- -25 - 70 °C
- Weight
- 113 g
- Width
- 22 mm
- Wireless LAN connection
- No
Specific References
- EAN13
- 0767035189109
