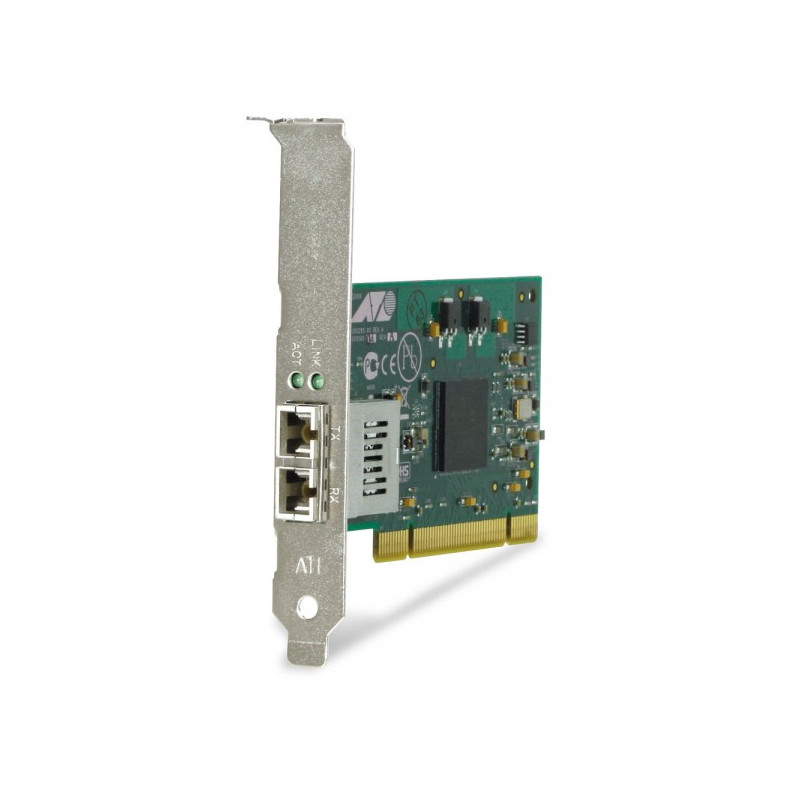

Allied Telesis 1000SX LC desktop fiber Network Interface Card (PCI)
1000SX LC desktop fiber Network Interface Card (PCI)
The AT-2916SX, 32-bit, Gigabit Ethernet NIC provides a 1000Mbps fiber port to deliver desktop connectivity in fiber rich LAN environments. It's an ideal fit for the security needed in government applications. With both standard and low profile brackets included (standard bracket pre-assembled), driver support for most popular operating systems and PCI 2.2 capability, installation couldn't be easier. Available in SC or LC connector types.
-Jumbo frames support up to 9KB.
-TCP, UDP & IP checksum generation and check packet filtering based on checksum errors.
-Support for all popular operating systems, including Sun Solaris.
-Link Aggregation gives higher capacity and availability.
-Virtual LAN (VLAN) support for complete network optimization.
-Virtual Cable Tester (VCT) for cable fault diagnostics.
-Advanced Power Management (ACPI).
-Bring a remote sleeping computer to full power with Wake-on-LAN (WOL).
-Network Administration Support with remote boot (PXE 2.0).
-Jumbo frames support up to 9KB.
-TCP, UDP & IP checksum generation and check packet filtering based on checksum errors.
-Support for all popular operating systems, including Sun Solaris.
-Link Aggregation gives higher capacity and availability.
-Virtual LAN (VLAN) support for complete network optimization.
-Virtual Cable Tester (VCT) for cable fault diagnostics.
-Advanced Power Management (ACPI).
-Bring a remote sleeping computer to full power with Wake-on-LAN (WOL).
-Network Administration Support with remote boot (PXE 2.0).
Data sheet
- Certification
- RoHS, UL, FCC/EN55022 B, TUV, EN55024, CE, C-TICK,
VCCI - Compatible operating systems
- Windows XP/Vista/Vista 64-bit/XP 64-bit/2003/2003 64-bit/2000,
NDIS2,
NetWare 6.x,
Linux 2.4/2.6 - Compliance industry standards
- IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- Connectivity technology
- Wired
- Data transfer rate (max)
- 1024, 100 Mbit/s
- Depth
- 64 mm
- Ethernet LAN connection
- Yes
- Host interface
- x8 PCI-e 2.0
- Interface
- LC
- Mac compatibility
- No
- Management protocols
- WMI, ACPI 1.1, PXE 2.1, SNMP
- Operating relative humidity (H-H)
- 5 - 90 %
- Operating relative humidity range
- 5 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Power consumption (typical)
- 3.78 W
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -25 - 70 °C
- Storage temperature range (T-T)
- -25 - 70 °C
- Width
- 993 mm
Specific References
- EAN13
- 7670351810288
