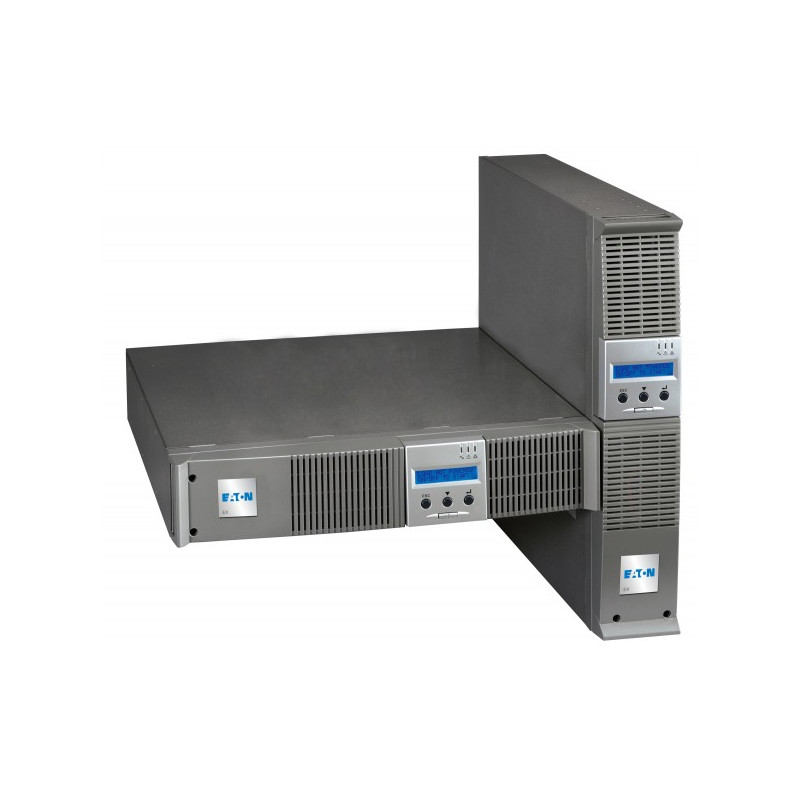

Eaton EX 1000 RT2U
EX 1000VA / 900W, RT, 2U
The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6 AC outlet(s)
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- CE, TüV GS, CB report, UL 1778 cUL CSA 22.2
- Colour of product
- Grey
- Communication options, slot
- 1 Minislot
- Depth
- 483 mm
- Dimensions (W x D x H)
- 438.1 x 482.6 x 87.9 mm (17.25 x 19 x 3.46 ")
- Dimensions (WxDxH)
- 438 x 483 x 86.5 mm
- Height
- 86.5 mm
- Input connection type
- C14
- Input operation voltage (max)
- 284 V
- Input operation voltage (min)
- 96 V
- Noise level
- 97.4 dB
- Nominal input voltage
- 83 - 159 VAC
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 10 - 40 °C
- Output connections
- (6) C13
- Output operation voltage (max)
- 250 V
- Output operation voltage (min)
- 200 V
- Output power
- 900 W
- Output power capacity (VA)
- 1000 VA
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 40/70 Hz
- Rack capacity
- 9U
- RS-232 ports
- 2
- Safety
- IEC/EN 62 040-1, IEC/EN 62 040-2, IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 60 950-1 (RD)
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Typical backup time at full load
- 3 min
- Typical backup time at half load
- 14 min
- USB 2.0 ports quantity
- 7
- Weight
- 18000 g
- Width
- 438 mm
Specific References
- EAN13
- 3553340681820
EX 1000VA / 900W, RT, 2U
