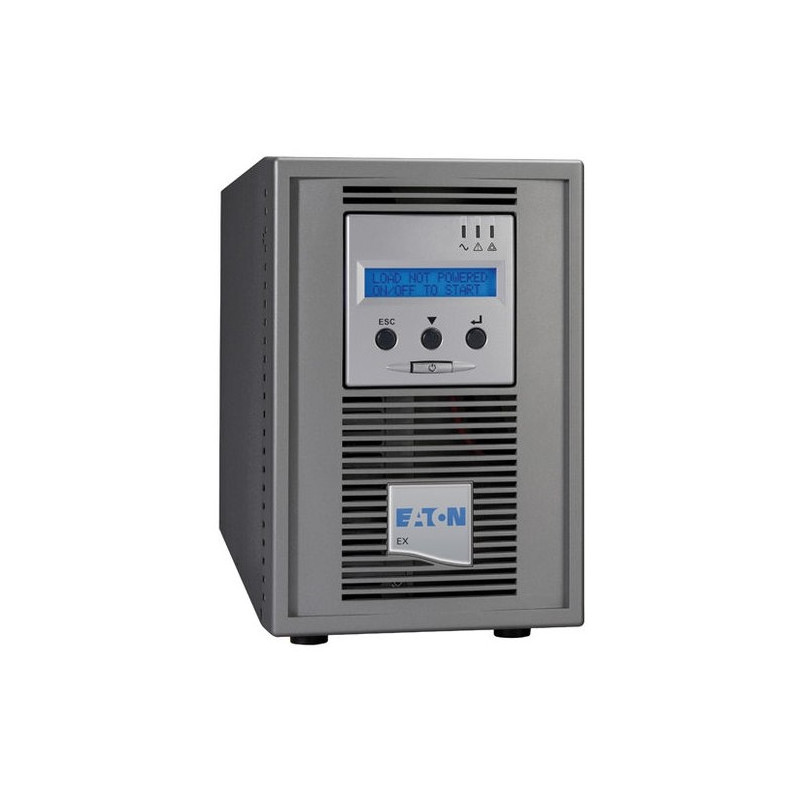

Eaton EX 700VA Tower
EX 700 - 700VA / 630W Mini Tower, IEC C14 Input Connection, (6) C13 receptacles
The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
Data sheet
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- CE, TüV GS, CB report, UL 1778 cUL CSA 22.2
- Colour of product
- Grey
- Communication software
- Intelligent Power Manager
- Dimensions (W x D x H)
- 152.4 x 400 x 241.8 mm (6 x 15.75 x 9.52 ")
- Dimensions (WxDxH)
- 153 x 440 x 242 mm
- Form factor
- Mini Tower
- Input connection type
- C14
- Noise level
- 97.4 dB
- Nominal input voltage
- 83 - 159 VAC
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- (6) C13
- Output power
- 630 W
- Output power capacity (VA)
- 700 VA
- Power supply input frequency
- 50/60 Hz
- Safety
- IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 62 040-1-1, IEC/EN 60 950-1 (RD), IEC/EN 62 040-2 C1 Class
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Typical backup time at full load
- 9 min
- Typical backup time at half load
- 31 min
- Weight
- 12500 g
Specific References
- EAN13
- 3553340681806
EX 700 - 700VA / 630W Mini Tower, IEC C14 Input Connection, (6) C13 receptacles
