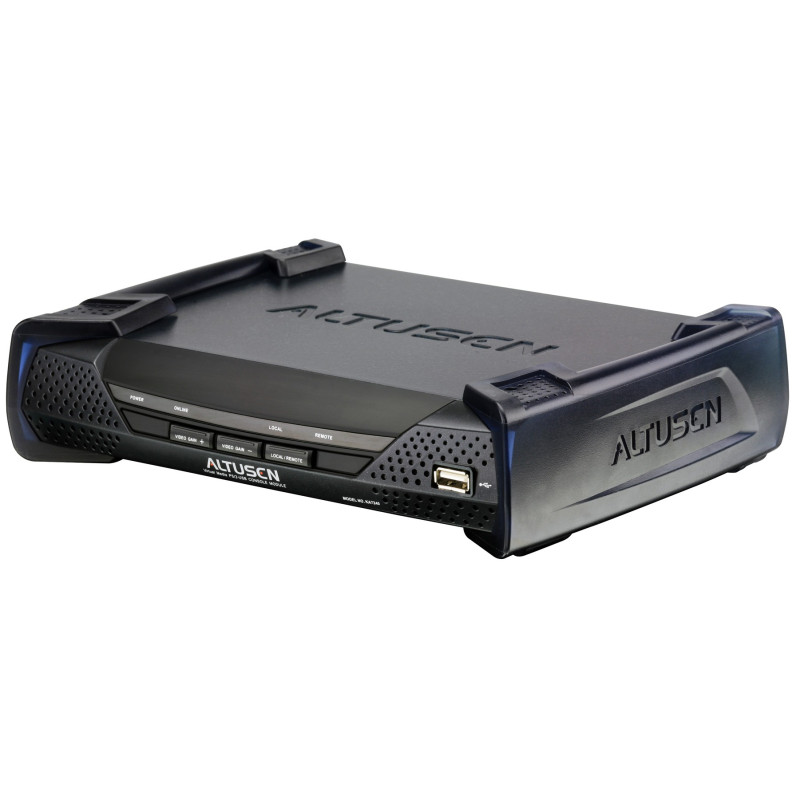

Aten KA7240
Combo (PS/2 & USB - VGA) Console for Matrix KVM, with Audio & Virtual Media Support
Features
- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)
- Virtual Media Support
- Audio enabled
- Enhanced video quality via automatic skew compensation support
- Supports PS/2 and USB keyboards and mice(Console)
- Switch between your workstation computer and the matrix KVM switch
- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers
- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point
- Connects to matrix KVM switch via Cat 5e/6 cable
- Superior video quality – 1280 x 1024 @ 60 Hz for up to 300 m
- Manual video gain control for fine tuning
- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus
- Firmware upgradeable
Requirements
- 1x KA7240 Virtual Media PS/2-USB Console Module with stacking brackets
- 1x 2L-5302P KVM Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x RS-232 Cable (DB-9F to DB9-F)
- 1x Grounding Wire
- 1x Rack Mount Kit
- 1x User Instructions
- One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)
- Virtual Media Support
- Audio enabled
- Enhanced video quality via automatic skew compensation support
- Supports PS/2 and USB keyboards and mice(Console)
- Switch between your workstation computer and the matrix KVM switch
- Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers
- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point
- Connects to matrix KVM switch via Cat 5e/6 cable
- Superior video quality – 1280 x 1024 @ 60 Hz for up to 300 m
- Manual video gain control for fine tuning
- Convenient computer selection via intuitive hotkey combinations or graphical OSD menus
- Firmware upgradeable
Requirements
- 1x KA7240 Virtual Media PS/2-USB Console Module with stacking brackets
- 1x 2L-5302P KVM Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x RS-232 Cable (DB-9F to DB9-F)
- 1x Grounding Wire
- 1x Rack Mount Kit
- 1x User Instructions
Data sheet
- Cables included
- KVM,RS-232
- Colour of product
- Black
- DC-in jack
- Yes
- Depth
- 171.5 mm
- Headphone outputs
- 1
- Height
- 990mm
- Maximum transfer distance
- 900 m
- Microphone in
- Yes
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- PS/2 ports quantity
- 2
- RoHS compliance
- Yes
- RS-232 ports
- 2
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- USB 2.0 ports quantity
- 7
- VGA (D-Sub) ports quantity
- 1
- Weight
- 1260 g
- Width
- 227.1 mm
Specific References
- EAN13
- 0672792400261
Combo (PS/2 & USB - VGA) Console for Matrix KVM, with Audio & Virtual Media Support
