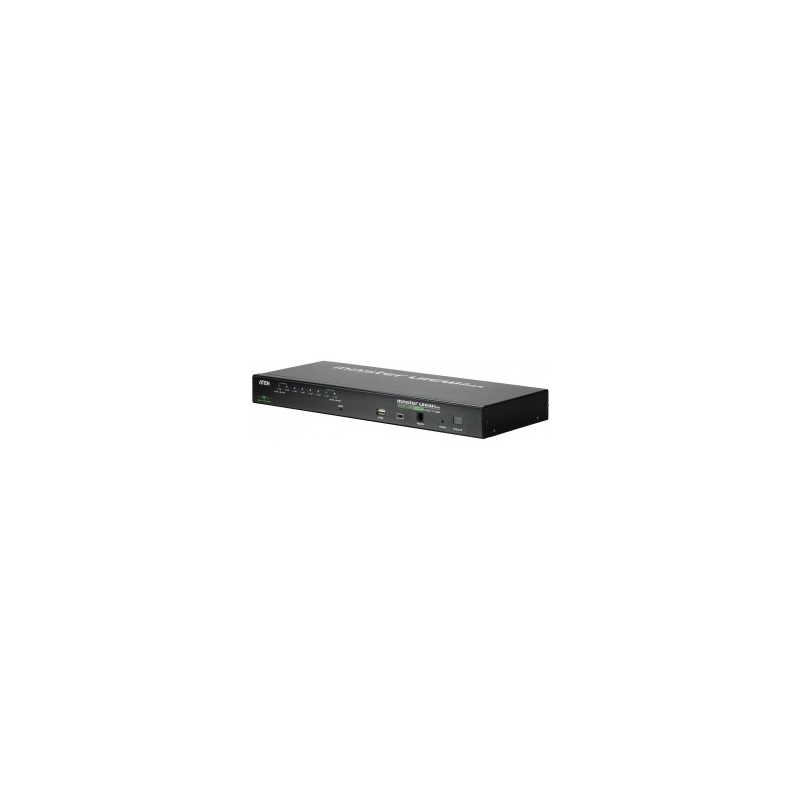

Aten CS1708I
8-Port USB - PS/2 VGA KVM Over IP Switch with USB Peripheral port
Features
- Management
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
- Firmware upgradable
- Backup and restore configuration and user account settings
- Event logging
- Enable/disable browser access
- IPv6 capable
Package Content
1x CS1708i KVM Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD6-1605-24EG Power Adapter
1x Software CD
1x User Instructions
- Management
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
- Firmware upgradable
- Backup and restore configuration and user account settings
- Event logging
- Enable/disable browser access
- IPv6 capable
Package Content
1x CS1708i KVM Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD6-1605-24EG Power Adapter
1x Software CD
1x User Instructions
Data sheet
- AC adapter included
- Yes
- Built-in display
- No
- Cables included
- KVM
- Colour depth
- 24 bit
- Colour of product
- Black
- Compatible operating systems
- Windows, Mac OS X, Linux, Sun
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Depth
- 433 mm
- Height
- 990mm
- I/O ports
- 1 x SPHD-18 M
8 x SPHD-17 F
1 x DB-25 M
1 x DC
1 x RJ-45 F
1 x RJ-11
1 x USB A - Material
- Zinc steel
- Maximum resolution
- 2048 x 1536 pixels
- Number of computers controlled
- 8
- Number of users
- 32 user(s)
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Ports quantity
- Range, depending on model
- Power consumption (typical)
- 9W
- RoHS compliance
- Yes
- Scan interval
- 255 s
- Security algorithms
- 802.1x RADIUS,SSL/TLS
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- USB 2.0 ports quantity
- 7
- Weight
- 2810 g
- Width
- 993 mm
Specific References
- EAN13
- 5052179763366
