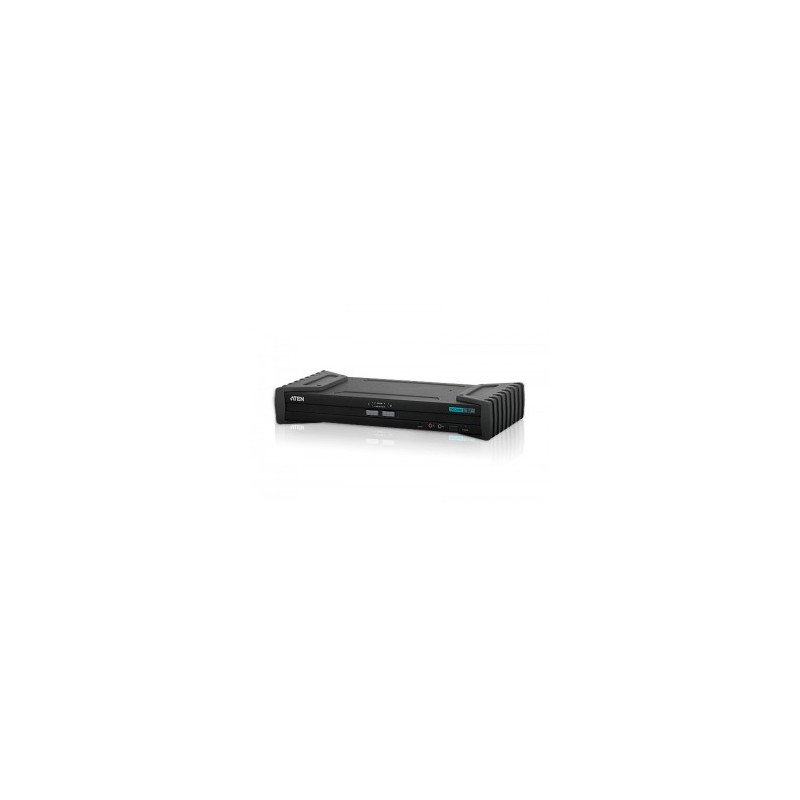

Aten CS1182
2-Port USB DVI Secure KVM Switch
Features
- 2-port USB DVI Dual-Link Secure KVM Switch
- Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
- One USB console controls 2 secure computers
- NIAP-certified — validated to Common Criteria EAL2+ security requirements
- Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching
- Isolated channel per port — makes it impossible for data to be transferred between computers
- Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components
- Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
- Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
- Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware
- Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch
- Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support — Windows, Linux, Mac, and Sun
- Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
- Rugged metal enclosure
- Built-in internal power
- Speaker and microphone support
Package Contents
- 1x CS1182 USB DVI Secure KVM Switch
- 1x 0AD8-0C05-24EG Power Cord
- 1x User Instructions
- 2-port USB DVI Dual-Link Secure KVM Switch
- Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
- One USB console controls 2 secure computers
- NIAP-certified — validated to Common Criteria EAL2+ security requirements
- Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching
- Isolated channel per port — makes it impossible for data to be transferred between computers
- Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components
- Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
- Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
- Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware
- Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch
- Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
- Multiplatform support — Windows, Linux, Mac, and Sun
- Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
- Rugged metal enclosure
- Built-in internal power
- Speaker and microphone support
Package Contents
- 1x CS1182 USB DVI Secure KVM Switch
- 1x 0AD8-0C05-24EG Power Cord
- 1x User Instructions
Data sheet
- AC input frequency
- 50/60 Hz
- Built-in display
- No
- Cables included
- AC
- Certification
- RoHS
- Colour of product
- Black
- Compatible operating systems
- Windows, Linux, Mac, Sun
- Connectivity technology
- Wired
- DC-in jack
- Yes
- Depth
- 169 mm
- Height
- 60.6 mm
- Keyboard port type
- USB
- Material
- Zinc steel
- Maximum analog resolution
- 2048 x 1536 pixels
- Maximum digital resolution
- 2560 x 1600 pixels
- Maximum resolution
- 2560 x 1600 pixels
- Mouse port type
- USB
- Number of computers controlled
- 2
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating relative humidity range
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Power consumption (typical)
- 9W
- Power supply type
- AC
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Video port type
- DVI-I
- Weight
- 2060 g
- Width
- 349 mm
Specific References
- EAN13
- 4710423774940
