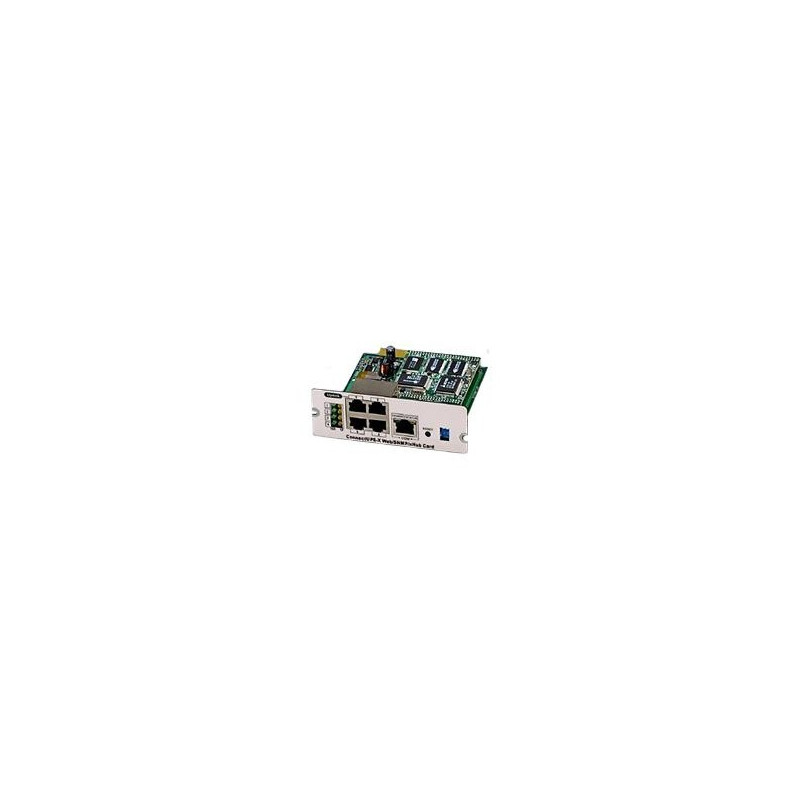

Eaton ConnectUPS-X
ConnectUPS-X, HTTP, SNMP, TFTP, Telnet, BootP, DHCP, WAP, ARP, RARP, Fast Ethernet, X-Slot, 9 VDC, 3.5 W, 120g
CONNECTUPS-X WEB/SNMP UPS CONNECTIVITY DEVICE
The ConnectUPS X-Slot (ConnectUPS-X) Web/SNMP device allows you to connect your Eaton UPS directly to the Ethernet network and the Internet. This unique solution allows you to conveniently monitor and manage your UPS with a standard Web browser, while simultaneously providing graceful shutdown for multiple computer systems over the network. This model is designed for Eaton for UPSs with X-Slots. This model also integrates a three-port switching hub to support multiple PCs or networking equipment.
HTTP, SNMP, SMTP, WAP, Telnet, SSL, SSH compatibility and a console port enable dynamic and versatile support for a large variety of system configurations.
- Easy monitoring and management of your UPS using either a standard Web browser or third-party network management software, or through Intelligent Power Manager software.
- Remote control and rebooting of UPS-protected devices over the network.
- Protection of your information through automatic and graceful shutdown of multiple UPS-protected devices during an extended power failure using NetWatch software.
- Real-time email alarm notification with built-in email capability.
- Support for standard UPS MIB and Eaton MIB to provide added functionality.
- Ability to turn a UPS into a three-port, power-protected switching hub with the X-models card.
- SSL and SSH data encryption and authentication.
- Web pages served automatically in correct local language.
The ConnectUPS X-Slot (ConnectUPS-X) Web/SNMP device allows you to connect your Eaton UPS directly to the Ethernet network and the Internet. This unique solution allows you to conveniently monitor and manage your UPS with a standard Web browser, while simultaneously providing graceful shutdown for multiple computer systems over the network. This model is designed for Eaton for UPSs with X-Slots. This model also integrates a three-port switching hub to support multiple PCs or networking equipment.
HTTP, SNMP, SMTP, WAP, Telnet, SSL, SSH compatibility and a console port enable dynamic and versatile support for a large variety of system configurations.
- Easy monitoring and management of your UPS using either a standard Web browser or third-party network management software, or through Intelligent Power Manager software.
- Remote control and rebooting of UPS-protected devices over the network.
- Protection of your information through automatic and graceful shutdown of multiple UPS-protected devices during an extended power failure using NetWatch software.
- Real-time email alarm notification with built-in email capability.
- Support for standard UPS MIB and Eaton MIB to provide added functionality.
- Ability to turn a UPS into a three-port, power-protected switching hub with the X-models card.
- SSL and SSH data encryption and authentication.
- Web pages served automatically in correct local language.
Data sheet
- Cabling technology
- 10/100-Base-T(X)
- Certification
- FCC
- Compatible operating systems
- Windows, UNIX, Linux, NetWare, Macintosh, SuSE
- Compliance industry standards
- IEEE 802.3, IEEE 802.3u
- Connectivity technology
- Wired
- Data transfer rate (max)
- 100 Mbit/s
- Depth
- 134 mm
- Ethernet LAN connection
- Yes
- Height
- 990mm
- Input voltage
- –36 - –72 V
- Interface
- XFP
- Networking features
- Yes
- Networking standards
- IEEE 802.3,IEEE 802.3u
- Operating relative humidity (H-H)
- 10 - 80 %
- Operating relative humidity range
- 10 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Ports quantity
- 4
- Power consumption (typical)
- 3.5 W
- Security algorithms
- SSH,SSL/TLS
- Security algorithms supported
- SSH, SSL/TLS
- Source data-sheet
- Icecat.biz
- Supported network protocols
- HTTP, SNMP, TFTP, Telnet, BootP, DHCP, WAP, ARP, RARP
- Weight
- 120 g
- Width
- 81 mm
- Wireless LAN connection
- No
Specific References
- EAN13
- 0743172016751
