Eaton Powerware 9130

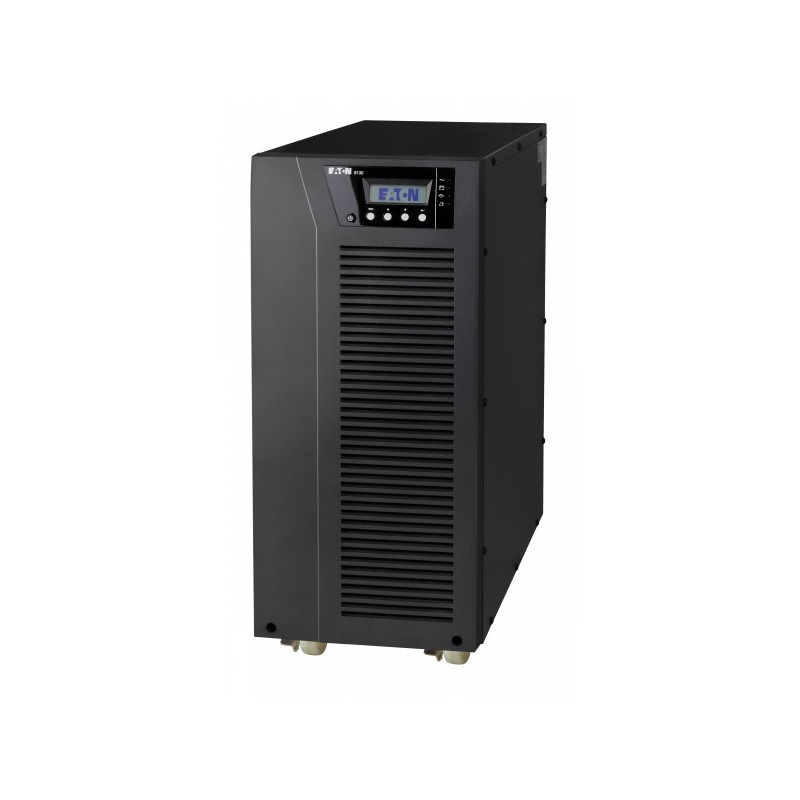

9130 Tower UPS, 220-240V, 5000VA, 4500W
The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of 95% in online double conversion and 98% in high efficiency mode the 9130 UPS cuts energy costs while significantly extending battery service life with ABM technology. The 9130 UPS also has a bright LCD user interface to simplify monitoring.
- Cuts energy usage and costs with up to 95% efficiency in online double conversion mode and 98% in high efficiency mode.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
- Simplifies UPS monitoring and management with a bright LCD user interface and free intuitive power management software
- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
- Extends battery runtime for critical devices with load segments (except for 5000/6000 VA models)
- Maximizes runtimes with optional extended battery modules
- Cuts energy usage and costs with up to 95% efficiency in online double conversion mode and 98% in high efficiency mode.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
- Simplifies UPS monitoring and management with a bright LCD user interface and free intuitive power management software
- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
- Extends battery runtime for critical devices with load segments (except for 5000/6000 VA models)
- Maximizes runtimes with optional extended battery modules
Data sheet
- AC outlet types
- Terminal
- Battery type
- VRLA
- Certification
- CE, GS
- Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 542 mm
- Display
- LCD
- Efficiency
- 95 %
- Height
- 574 mm
- Input operation voltage (max)
- 276 V
- Input operation voltage (min)
- 96 V
- Interface
- USB, RS-232
- Noise level
- 50 dB
- Nominal input voltage
- 220-240 V
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output power
- DC 9V
- Output power capacity (VA)
- 5000 VA
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 45/65 Hz
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 40 °C
- Storage temperature range (T-T)
- -20 - 40 °C
- Weight
- 75500 g
- Width
- 244 mm
Specific References
- EAN13
- 0743172033604
