Cisco Catalyst 3850
  • Cisco Catalyst 3850
  • Cisco Catalyst 3850

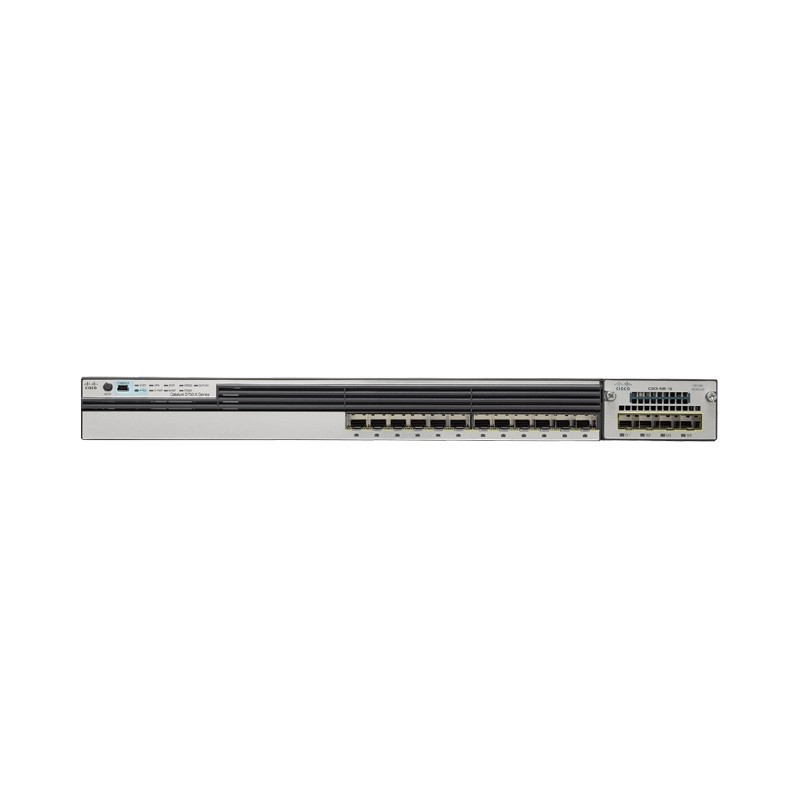

Cisco WS-C3850-12S-S

Stackable 12 SFP Ethernet ports, with 350WAC power supply, 1 RU, IP Base feature set
Out of Stock
Reference: WS-C3850-12S-S

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
Cisco

Data sheet

10G support
No
AC input frequency
50/60 Hz
AC input voltage
115-230 V
Certification
47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24
Colour of product
Grey
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
DC-in jack
Yes
Depth
449.5 mm
Energy Star certified
Yes
Heat dissipation
1207 BTU/h
Height
990mm
Input current
4 - 2 A
MAC address table
96000 entries
Mean time between failures (MTBF)
315840 h
Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
8 - 35 °C
Power over Ethernet (PoE) support
No
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Security algorithms
802.1x RADIUS,SNMP,SSH
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
8 - 85 °C
Switch layer
L7
Switching capacity
68 Gbit/s
Throughput
50.5 Mpps
Weight
7020 g
Width
444.5 mm

Specific References

EAN13
0882658660436
