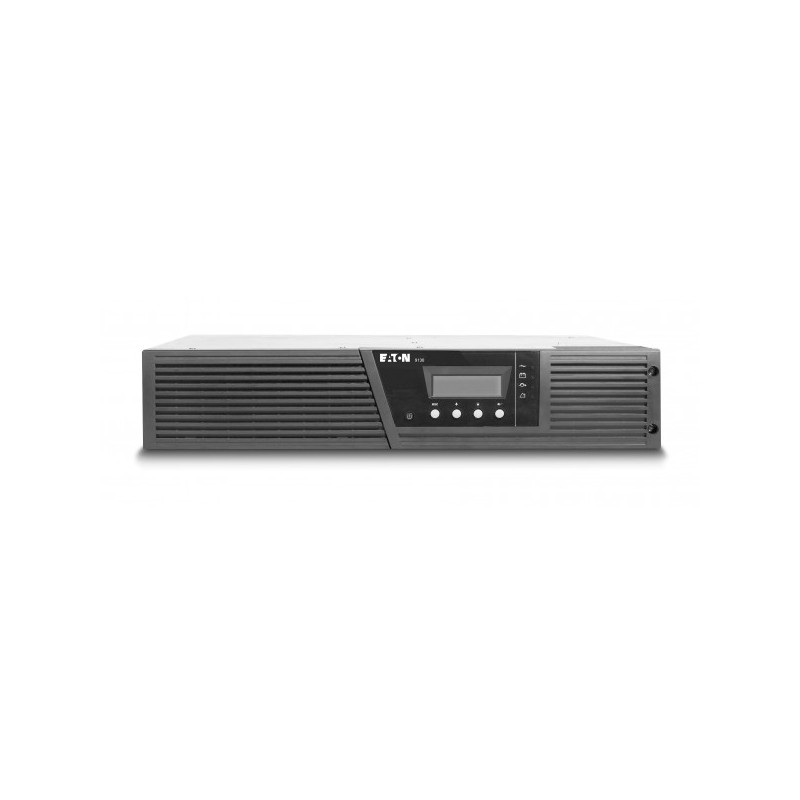

Eaton 9130i1000R-XL2U
9130 RM, 1000VA/900W
The Eaton 9130 Rackmount UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >95%, the 9130 UPS cuts energy costs while packing up to three kVA of power into only 2U of rack space. The 9130 UPS significantly extends battery service life with ABM technology and also has a bright LCD user interface to simplify monitoring.
- Cuts energy usage and costs with >95% efficiency rating in high efficiency mode
- Conserves valuable rack space with 2U form factor that includes internal batteries and a 4-post rail kit
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
- Simplifies UPS monitoring and management with a bright LCD user interface, intuitive power management software and optional eNotify Remote Monitoring service
- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
- Maximizes runtimes with optional extended battery modules
- Cuts energy usage and costs with >95% efficiency rating in high efficiency mode
- Conserves valuable rack space with 2U form factor that includes internal batteries and a 4-post rail kit
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
- Simplifies UPS monitoring and management with a bright LCD user interface, intuitive power management software and optional eNotify Remote Monitoring service
- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
- Maximizes runtimes with optional extended battery modules
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6 AC outlet(s)
- Battery type
- VRLA 12V/9 Ah
- Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 450 mm
- Dimensions (WxDxH)
- 438 x 450 x 86.5 mm
- Display
- LCD
- Efficiency
- 94 %
- Height
- 86.5 mm
- Input connection type
- C14
- Input operation voltage (max)
- 276 V
- Input operation voltage (min)
- 96 V
- Maximum current
- 96 A
- Noise level
- 97.4 dB
- Nominal input voltage
- 160/276 V
- Operating relative humidity (H-H)
- 5 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- 6 x C13
- Output operation voltage (max)
- 415 V
- Output operation voltage (min)
- 97 V
- Output power
- 900 W
- Output power capacity (VA)
- 1000 VA
- Power factor
- 0.9
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 45/65 Hz
- Rack capacity
- 9U
- Relative humidity
- 5 - 90 %
- RS-232 ports
- 2
- Safety
- IEC/EN 62040-1, IEC/EN 62040-2
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 40 °C
- Storage temperature range (T-T)
- -25 - 55 °C
- Typical backup time at full load
- 6 min
- Typical backup time at half load
- 22 min
- USB 2.0 ports quantity
- 7
- Weight
- 16000 g
- Width
- 438 mm
Specific References
- EAN13
- 7903410525848
