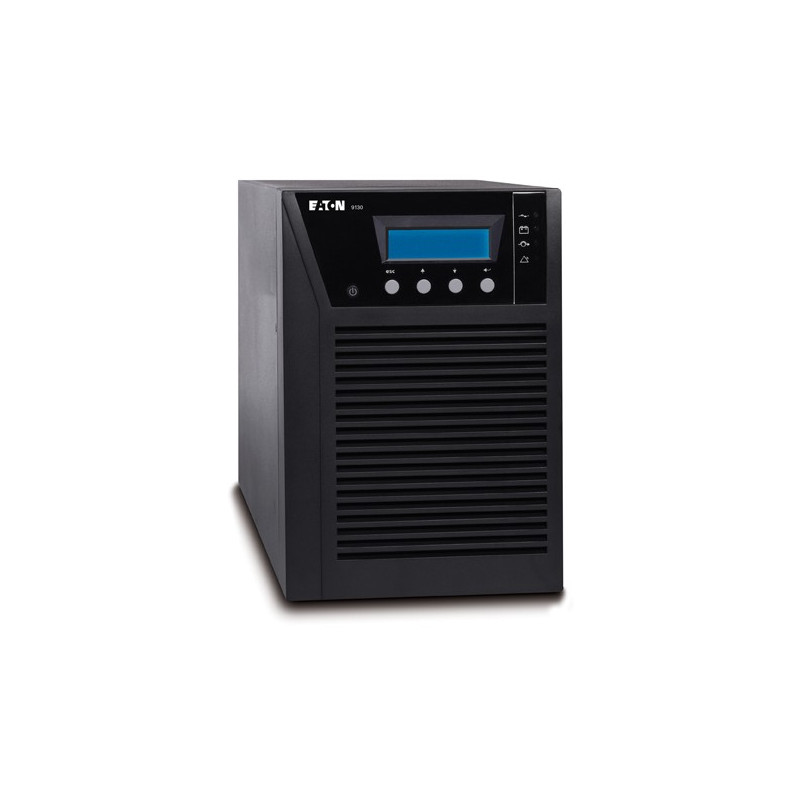

Eaton 9130-1000L
1000VA / 900W, 120V, 5-15P input, (6) 5-15R output, RS-232, USB, LCD, 14.5 kg
The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of 95% in online double conversion and 98% in high efficiency mode the 9130 UPS cuts energy costs while significantly extending battery service life with ABM technology. The 9130 UPS also has a bright LCD user interface to simplify monitoring.
- Cuts energy usage and costs with up to 95% efficiency in online double conversion mode and 98% in high efficiency mode.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
- Simplifies UPS monitoring and management with a bright LCD user interface, free, intuitive power management software and optional eNotify Remote Monitoring service
- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
- Extends battery runtime for critical devices with load segments (except for 5000/6000 VA models)
- Maximizes runtimes with optional extended battery modules
- Cuts energy usage and costs with up to 95% efficiency in online double conversion mode and 98% in high efficiency mode.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor
- Simplifies UPS monitoring and management with a bright LCD user interface, free, intuitive power management software and optional eNotify Remote Monitoring service
- Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries
- Extends battery runtime for critical devices with load segments (except for 5000/6000 VA models)
- Maximizes runtimes with optional extended battery modules
Data sheet
- AC outlet types
- NEMA 5–15R
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery type
- 12V/9 Ah
- Cable length
- 1.8 m
- Certification
- FCC
- Colour of product
- Black
- Depth
- 380 mm
- Display
- LCD
- Efficiency
- 95 %
- Fan
- Yes
- Height
- 230 mm
- Input operation voltage (max)
- 138 V
- Maximum current
- 8.3 A
- Noise level
- 50 dB
- Operating relative humidity range
- 5 - 90 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Output operation voltage (max)
- 120 V
- Output operation voltage (min)
- 120 V
- Output power
- 900 W
- Output power capacity (VA)
- 1000 VA
- Power factor
- 0.9
- Power plug
- NEMA 5-15P
- Power supply input frequency
- 50/60 Hz
- Safety
- UL, CUL, VCCI
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -20 - 40 °C
- Weight
- 14.5 kg
- Width
- 993 mm
1000VA / 900W, 120V, 5-15P input, (6) 5-15R output, RS-232, USB, LCD, 14.5 kg
