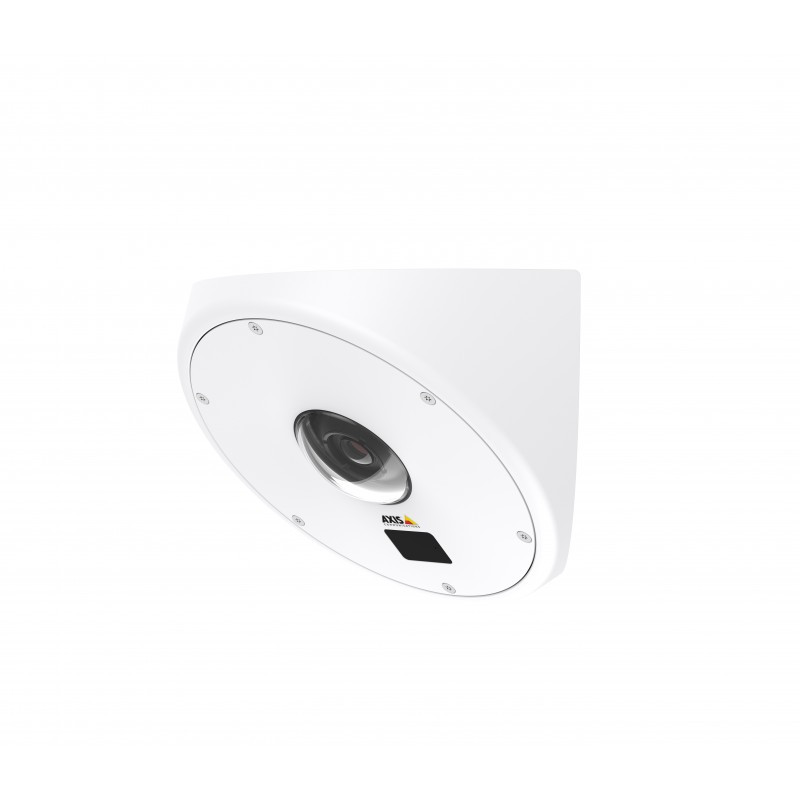

Axis Q8414-LVS
Q8414-LVS Network Camera, White
Designed to prevent
The unique corner-mount camera lacks ligature points while the anti-grip design meets the requirements for installations in correctional and medical facilities where there is an increasing need to prevent self-harm and avoid internal conflicts. The camera is available in two color versions, powder coated white (AXIS Q8414-LVS White) and brushed stainless steel (AXIS Q8414-LVS Metal)
Easy and safe cleaning
The water resistant casing allows for water hose cleaning; soapy water, or any other multi-purpose cleaning agents. AXIS Q8414-LVS camera supports both IP66- and NEMA 4X-rating.
Images and capabilities that capture
Supporting Lightfinder technology, AXIS Q8414-LVS can maintain colors even in very poor lighting conditions. And the P-Iris control provides images with an optimal depth of field, resolution, image contrast and clarity. A built-in invisible IR LED illuminator (940 nm) can be used for covert video surveillance in complete darkness. Together with a resolution of 1.3 Megapixel or HDTV 720p video stream and an horizontal angle of view up to 105°, the camera covers the entire room without blind spots.
Audio detection
Thanks to the built-in surface mounted high-quality microphone, audio detection can be used as a complement to an indoor video surveillance. Audio detection may be used as an alarm in order to identify urgent situation, such as the sound of fighting, screaming, slamming doors or gunshots. The audio does not need to be recorded, avoiding issues with local legislation, but it is intended to trigger an alarm. The audio feature can also be disabled.
Ease of installation
AXIS Q8414-LVS offers easy installation with remote zoom and focus for fine tuning of the picture from a computer as opposed to at the camera itself. Furthermore, the pixel counter assures that the required pixel resolution is met. Power over Ethernet supplies power to the cameras via the network, which eliminates the need for power cables and reduces installation costs.
The unique corner-mount camera lacks ligature points while the anti-grip design meets the requirements for installations in correctional and medical facilities where there is an increasing need to prevent self-harm and avoid internal conflicts. The camera is available in two color versions, powder coated white (AXIS Q8414-LVS White) and brushed stainless steel (AXIS Q8414-LVS Metal)
Easy and safe cleaning
The water resistant casing allows for water hose cleaning; soapy water, or any other multi-purpose cleaning agents. AXIS Q8414-LVS camera supports both IP66- and NEMA 4X-rating.
Images and capabilities that capture
Supporting Lightfinder technology, AXIS Q8414-LVS can maintain colors even in very poor lighting conditions. And the P-Iris control provides images with an optimal depth of field, resolution, image contrast and clarity. A built-in invisible IR LED illuminator (940 nm) can be used for covert video surveillance in complete darkness. Together with a resolution of 1.3 Megapixel or HDTV 720p video stream and an horizontal angle of view up to 105°, the camera covers the entire room without blind spots.
Audio detection
Thanks to the built-in surface mounted high-quality microphone, audio detection can be used as a complement to an indoor video surveillance. Audio detection may be used as an alarm in order to identify urgent situation, such as the sound of fighting, screaming, slamming doors or gunshots. The audio does not need to be recorded, avoiding issues with local legislation, but it is intended to trigger an alarm. The audio feature can also be disabled.
Ease of installation
AXIS Q8414-LVS offers easy installation with remote zoom and focus for fine tuning of the picture from a computer as opposed to at the camera itself. Furthermore, the pixel counter assures that the required pixel resolution is met. Power over Ethernet supplies power to the cameras via the network, which eliminates the need for power cables and reduces installation costs.
Data sheet
- Built-in hard drive
- No
- Built-in microphone
- Yes
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/24500 - 2 s
- Card reader integrated
- Yes
- Certification
- EN 55022 B, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC 15 B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22 B, KCC KN-22 B, KN-24, IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC/EN 60529 IP6
- Colour of product
- White
- Compatible memory cards
- SD, SDHC, SDXC
- Connectivity technology
- Wired
- Day/night mode
- Yes
- Depth
- 255 mm
- Flash memory
- 96 MB
- Form factor
- covert
- Frame rate
- 9 fps
- Height
- 215 mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- International Protection (IP) code
- IPX8
- Maximum resolution
- 1280 x 960 pixels
- Megapixel
- 1.3 MP
- Microphone in
- Yes
- Minimum illumination
- 0.02 lx
- Operating temperature (T-T)
- 8 - 35 °C
- Optical sensor size
- 1/3 "
- Placement supported
- Universal
- Power over Ethernet (PoE) support
- Yes
- Progressive scan
- Yes
- PTZ control (Pan/Tilt/Zoom)
- Yes
- Rotation
- 340 °
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 160 x 90, 1280 x 960
- Supported network protocols
- IPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
- Type
- IP
- Zoom capability
- Yes
Specific References
- EAN13
- 7331021045118
