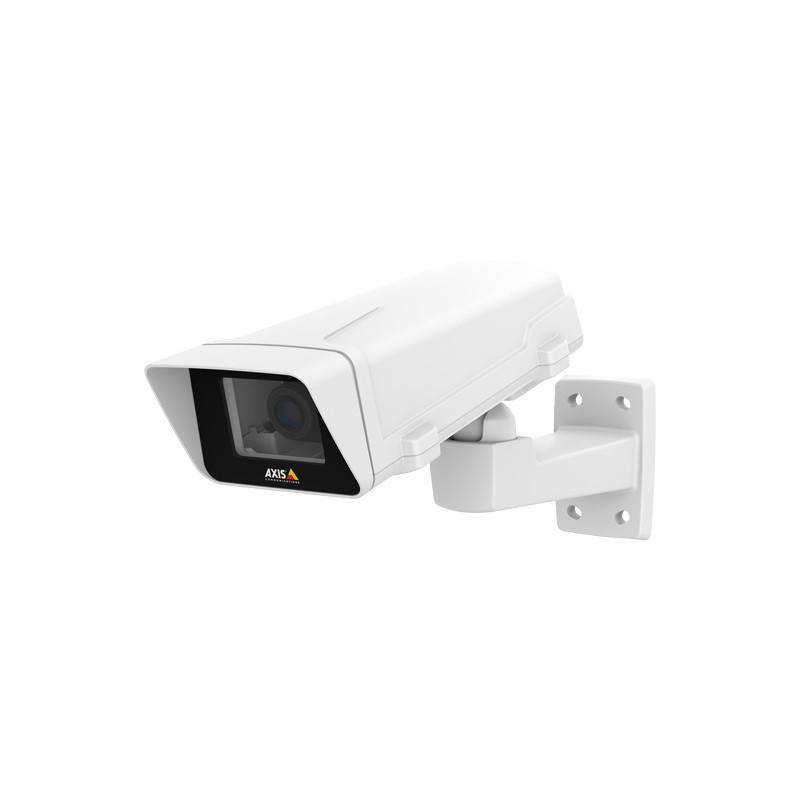

Axis M1125-E
IP, Outdoor, RGB CMOS 1/2.8", 1MP, 1920x1080, 512 MB RAM, 256 MB Flash, Digital PTZ, WDR, 10BASE-T/100BASE-TX PoE, microSD/microSDHC/microSDXC, IP66, NEMA 4X, IK10
AXIS M1125-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing.
Outdoor-ready video surveillance
The outdoor-ready camera provides IP66- and NEMA 4X-rated as well as IK10-rated protection. The camera can withstand a temperatures range of -20 °C to 50°C (-4 °F to 122 °F).
Images optimized for forensic analysis
Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions. Thanks to the automatic IR-cut filter, AXIS M1125-E can deliver images both day and night. Furthermore, the network camera includes the ability to seamlessly transition between WDR and low-light mode.
More video, less storage
AXIS M1125-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.
Outdoor-ready video surveillance
The outdoor-ready camera provides IP66- and NEMA 4X-rated as well as IK10-rated protection. The camera can withstand a temperatures range of -20 °C to 50°C (-4 °F to 122 °F).
Images optimized for forensic analysis
Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions. Thanks to the automatic IR-cut filter, AXIS M1125-E can deliver images both day and night. Furthermore, the network camera includes the ability to seamlessly transition between WDR and low-light mode.
More video, less storage
AXIS M1125-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.
Data sheet
- Built-in hard drive
- No
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 0.000006993 - 2 s
- Card reader integrated
- Yes
- Certification
- NEMA 4X\nIK10
- Colour of product
- White
- Compliance industry standards
- PoE IEEE 802.3af
- Connectivity technology
- Wired
- Day/night mode
- Yes
- DC-in jack
- Yes
- Focal length range (f-f)
- 3 - 10.5 mm
- Frame rate
- 9 fps
- Height
- 137 mm
- Interface
- XFP
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- International Protection (IP) code
- IPX8
- Maximum resolution
- 9600 x 600 DPI
- Megapixel
- 1.0 MP
- Minimum illumination
- 7 lx
- Mounting type
- Wall/Desk
- Operating temperature (T-T)
- -20 - 50 °C
- Optical sensor size
- 1/2.8 "
- Password protection type
- User
- Placement supported
- Universal
- Power consumption (typical)
- 3.6 W
- Power over Ethernet (PoE) support
- Yes
- Progressive scan
- Yes
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 160 x 90, 1920 x 1080 (HD 1080)
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH
- Type
- IP
- Video formats supported
- H.264, M-JPEG
- Viewing angle, horizontal
- 91 °
- Viewing angle, vertical
- 49 °
- Weight
- 1600 g
- White balance
- Sodium lamp,Auto,Fluorescent,Halogen,Manual
Specific References
- EAN13
- 7331021046481
IP, Outdoor, RGB CMOS 1/2.8", 1MP, 1920x1080, 512 MB RAM, 256 MB Flash, Digital PTZ, WDR, 10BASE-T/100BASE-TX PoE, microSD/microSDHC/microSDXC, IP66, NEMA 4X, IK10
