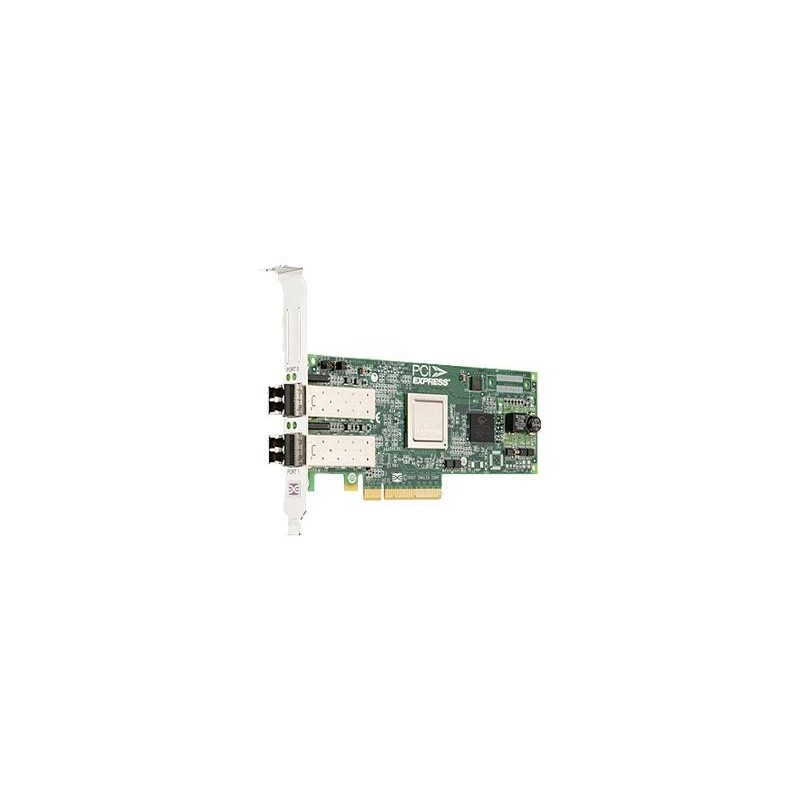

DELL 406-BBHB
2 x 8GFC, PCI-e
Emulex LPe12002-E HBA
The Emulex LPe12002-E HBA from Dell is a dual-ported host bus adapter that provides servers with limited PCI slots, greater port capacity and performance for virtualized data-center environments, critical information applications, and high-bandwidth applications such as backup, data replication and disaster-recovery implementations.
The LPe12002-E HBA is capable of delivering outstanding performance by leveraging a single ASIC design and combining unique hardware architecture to offer higher bus speed, fiber channel speed, lower latency and CPU offload.
Compatibility
This product is compatible with the following systems:
- PowerEdge R630;
- PowerEdge R730;
- PowerEdge R730XD.
The Emulex LPe12002-E HBA from Dell is a dual-ported host bus adapter that provides servers with limited PCI slots, greater port capacity and performance for virtualized data-center environments, critical information applications, and high-bandwidth applications such as backup, data replication and disaster-recovery implementations.
The LPe12002-E HBA is capable of delivering outstanding performance by leveraging a single ASIC design and combining unique hardware architecture to offer higher bus speed, fiber channel speed, lower latency and CPU offload.
Compatibility
This product is compatible with the following systems:
- PowerEdge R630;
- PowerEdge R730;
- PowerEdge R730XD.
Data sheet
- Certification
- CISPR 22 Class A, DHHS, EN55022 Class A, EMC, ICES-003 Class A, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, EN 60825-1, EN55024 Class A, BSMI Class A, VCCI Class A
- Colour of product
- Green
- Compatibility
- Server
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 10GBASE-T
- Data transfer rate (max)
- 8192 Mbit/s
- Depth
- 167.64 mm
- Fiber ethernet cabling technology
- 10GBASE-ER,10GBASE-EW,10GBASE-LR,10GBASE-LW,10GBASE-SR,10GBASE-SW
- Height
- 68.91 mm
- Host interface
- PCI-E
- Interface
- Fiber
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Windows operating systems supported
- Windows Vista Business,Windows Vista Enterprise,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Ultimate
Specific References
- EAN13
- 5397063818358
