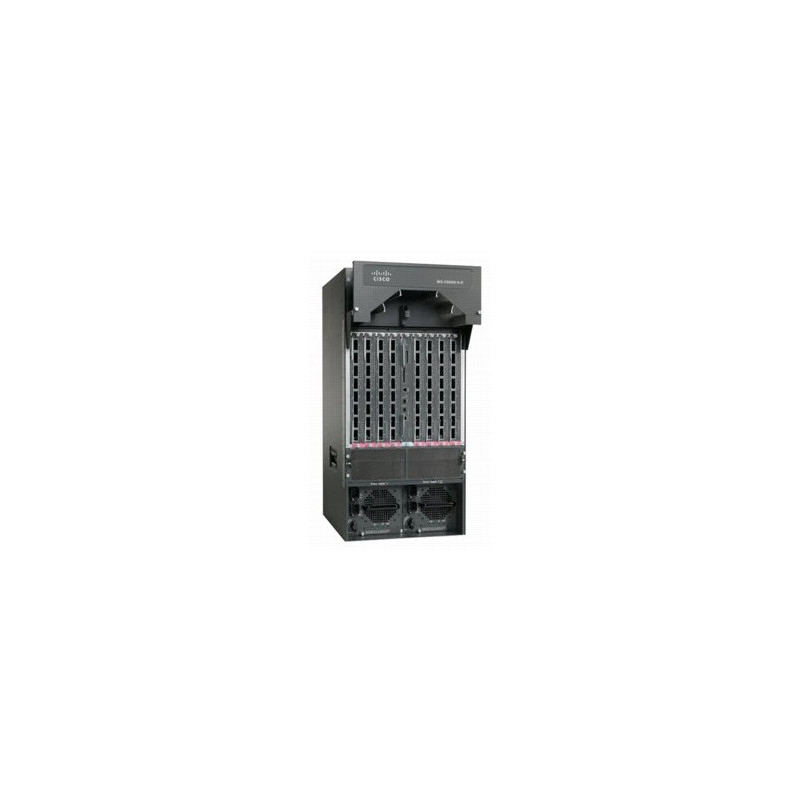

Cisco WS-C6509-V-E-CM network chassis
WS-C6509-V-E-CM=, spare
Cisco ® introduces the Cisco Catalyst ® 6509 Enhanced Vertical Chassis as part of the Cisco Catalyst 6500 Series enhanced (E-Series) switches, delivering chassis with up to 1440 Gbps of system bandwidth capacity (80 Gbps/slot), enhanced cable management, and front-to-back airflow optimized for hot aisle/cold aisle designs in data center and service provider colocation (NEBS-L3 compliant) deployments.
Cisco Catalyst 6500 E-Series chassis provide superior investment protection by supporting multiple generations of products on the same chassis, lowering the total cost of ownership. The Cisco Catalyst 6509-V-E chassis supports both the Cisco Catalyst 6500 Supervisor Engine 32 and the Cisco Catalyst 6500 Series Supervisor Engine 720 family of supervisor engines and associated LAN, WAN, and services modules.
Cisco Catalyst 6500 E-Series chassis provide superior investment protection by supporting multiple generations of products on the same chassis, lowering the total cost of ownership. The Cisco Catalyst 6509-V-E chassis supports both the Cisco Catalyst 6500 Supervisor Engine 32 and the Cisco Catalyst 6500 Series Supervisor Engine 720 family of supervisor engines and associated LAN, WAN, and services modules.
Data sheet
- Bundled software
- 12.2(18)SX10 +
- Compatibility
- Cisco Catalyst 6509 Enhanced Vertical
- Dimensions (WxDxH)
- 431 x 533 x 933 mm
- Electromagnetic emissions
- FCC P15 (CFR 47) A, VCCI A, EN55022 A, CISPR 22 A, CE, AS/NZS 3548 A, ETS300 386, EN55024, EN61000-6-1, EN50082-1
- Operating altitude
- 0 - 1981 m
- Operating relative humidity range
- 5 - 95 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Power requirements
- 100 - 240VAC
- Quantity per pallet
- 1 pc(s)
- Safety
- UL 60950, CSA-C22.2 No. 60950, EN 60950, IEC 60950, AS/NZS 60950/TS001
- Source data-sheet
- Icecat.biz
- Type
- ZIP
- Weight
- 54900 g
Specific References
- EAN13
- 0882658185625
WS-C6509-V-E-CM=, spare
