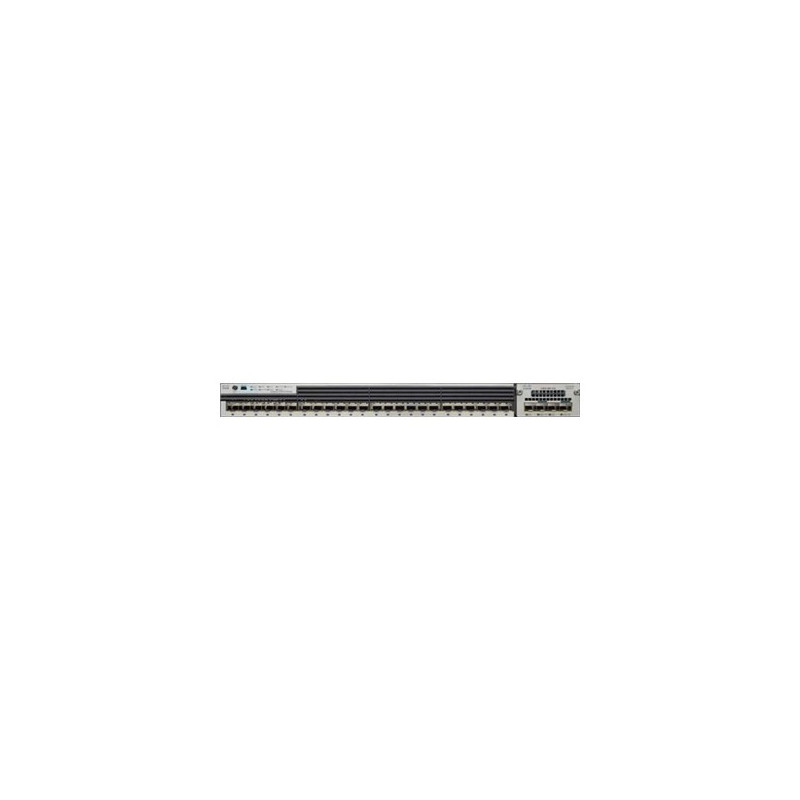

Cisco WS-C3750X-24S-S
Catalyst 3750-X, 1U, Stackable, Gigabit Ethernet, 24 x GE SFP, 350W PS, IP Base
Catalyst 3750-X
The Cisco® Catalyst® 3750-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Cisco Catalyst 3750-X Series primary features:
- Media Access Control Security (MACsec) hardware-based encryption;
- Flexible NetFlow and switch-to-switch hardware encryption with the uplink Service Module;
- Open Shortest Path First (OSPF) for routed access in IP Base image;
- IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware;
- Enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support;
- Enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network;
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port;
- Cisco StackPower™ technology: An innovative feature and industry first for sharing power among stack members;
- Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput.
The Cisco® Catalyst® 3750-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
Cisco Catalyst 3750-X Series primary features:
- Media Access Control Security (MACsec) hardware-based encryption;
- Flexible NetFlow and switch-to-switch hardware encryption with the uplink Service Module;
- Open Shortest Path First (OSPF) for routed access in IP Base image;
- IPv4 and IPv6 routing, Multicast routing, advanced quality of service (QoS), and security features in hardware;
- Enhanced limited lifetime warranty (LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support;
- Enhanced Cisco EnergyWise for operational cost optimization by measuring actual power consumption of the PoE devices, reporting, and reducing energy consumption across the network;
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port;
- Cisco StackPower™ technology: An innovative feature and industry first for sharing power among stack members;
- Cisco StackWise Plus technology for ease of use and resiliency with 64 Gbps of throughput.
Data sheet
- 10G support
- Yes
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 27
- Certification
- FCC, ICES, EN, CISPR 22, AS/NZS, BSMI, VCCI, RoHS, CLEI
- Colour of product
- Black, Grey
- Connectivity technology
- Wired
- DHCP server
- Yes
- Dimensions (WxDxH)
- 445 x 460 x 44.5 mm
- Fiber ethernet cabling technology
- 1000BASE‑BX10,1000BASE‑LH,1000BASE‑SX,1000BASE‑ZX,100BASE-FX,10GBASE-LR,10GBASE-LRM,10GBASE-SR
- Fiber optic connector
- LC,SFP
- Flash memory
- 96 MB
- Input current
- 4 - 2 A
- Input voltage
- –36 - –72 V
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- LED indicators
- LAN,Link,Power,Y
- MAC address table
- 6000 entries
- Management protocols
- SNMPv1/v2c/v3, IGMP
- Maximum data transfer rate
- 96 Gbit/s
- Mean time between failures (MTBF)
- 163707 h
- MIB support
- RMON I/II, BRIDGE-MIB, CDP-MIB, ENTITY-MIB, ENVMON-MIB, FLASH-MIB, FTP-MIB, HSRP-MIB, IGMP-MIB, IMAGE-MIB, MAC-MIB, PAGP-MIB, PING-MIB, RTTMON-MIB, SYSLOG-MIB, VTP-MIB, ETHERLIKE-MIB, IF-MIB, IP-MIB, SYS-MIB, TCP-MIB, TS-MIB, OSPF-MIB, PIM-MIB, RMON-MIB,
- Networking features
- Yes
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3at,IEEE 802.3x,IEEE 802.3z
- Noise level
- 97.4 dB
- Non-operating altitude
- 0 - 4572 m
- Number of VLANs
- 1005
- Operating altitude
- 914.4 - 2133 m
- Operating temperature (T-T)
- 8 - 35 °C
- Packet transfer speed
- 65.5 mpps
- Power consumption (typical)
- 108.9 W
- Power over Ethernet (PoE) support
- No
- Power supply
- 350 W
- Relative humidity
- 5 - 95 %
- Safety
- UL, CAN/CSA, EN, IEC, CCC
- Security algorithms
- 802.1x RADIUS,EAP,SSH
- Security algorithms supported
- 802.1x RADIUS, EAP, SSH
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Supported network protocols
- IPv6, TFTP, TCP/UDP, EIGRPv6, OSPFv3, BGP, DTP, PAgP, LACP, UDLD, SDM, ARP, VTP, NTP
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- USB 2.0 ports quantity
- 7
- Weight
- 7000 g
- Wireless LAN connection
- No
Specific References
- EAN13
- 0882658389757
Catalyst 3750-X, 1U, Stackable, Gigabit Ethernet, 24 x GE SFP, 350W PS, IP Base
