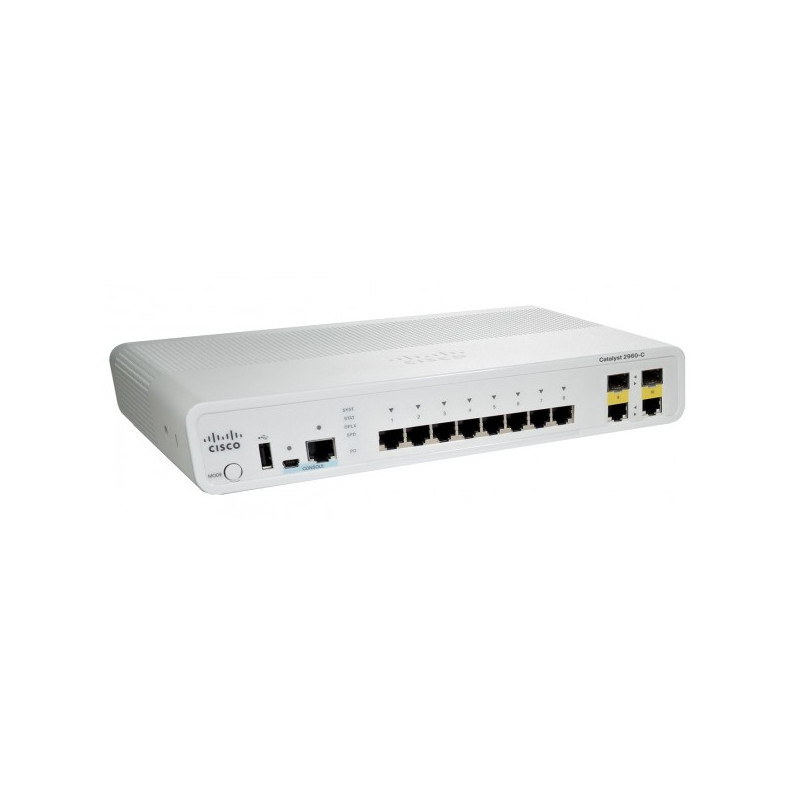

Cisco WS-C2960C-8TC-L
Catalyst 2960-C, Fast Ethernet, 8 x 10/100 LAN, 2 x 1Gb Combo SFP, LAN Base, 1.08kg, White
Catalyst 2960-C
Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
Cisco Catalyst 2960-C Series Compact Switche highlights:
- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;
- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;
- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;
- Easy to deploy, manage and extend the network loop free;
- Enhanced limited lifetime hardware warranty.
Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
Cisco Catalyst 2960-C Series Compact Switche highlights:
- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;
- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;
- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;
- Easy to deploy, manage and extend the network loop free;
- Enhanced limited lifetime hardware warranty.
Data sheet
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Bandwidth
- 10 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Certification
- FCC, EN, CE, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST, ROHS, CLEI
- Colour of product
- White
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T
- Depth
- 213 mm
- DHCP server
- Yes
- Dimensions (WxDxH)
- 269 x 238 x 44.4 mm
- Ethernet LAN (RJ-45) ports quantity
- 8
- Fiber ethernet cabling technology
- 1000BASE‑LH,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX,100BASE-BX,100BASE-FX,100BASE-LX
- Fiber optic connector
- LC, SFP
- Flash memory
- 96 MB
- Heat dissipation
- 38 BTU/h
- Height
- 990mm
- Input current
- 0.21 - 0.1 A
- Input voltage
- –36 - –72 V
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- LED indicators
- LAN,Link,Power,Y
- MAC address table
- 96000 entries
- Management protocols
- SNMPv1/v2c/v3, LLDP, IGMP
- Mean time between failures (MTBF)
- 516980 h
- MIB support
- RMON-MIB, RMON2-MIB, Bridge-MIB, CDP-MIB, Entity-MIB, ENVMON-MIB, Flash-MIB, FTP-MIB, Image-MIB, IP-Stat-MIB, LAG-MIB, MAC-MIB, PAGP-MIB, Ping-MIB, QOS-MIB, Security-MIB, RTTMON-MIB, SMI-MIB, STP-MIB, Syslog-MIB, TC-MIB, TCP-MIB, UDLDP-MIB, VTP-MIB, Eth-M
- Networking features
- Yes
- Networking standards
- IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Non-operating altitude
- 0 - 4000 m
- Number of VLANs
- 8000
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -5 - 45 °C
- Packet transfer speed
- 3.8 mpps
- Ports quantity
- 15
- Power consumption (typical)
- 9W
- Power over Ethernet (PoE) support
- No
- Safety
- UL, CAN/CSA, EN, IEC, CE, GB
- Security algorithms
- 802.1x RADIUS,SSH
- Security algorithms supported
- 802.1x RADIUS, SSH
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- -25 - 70 °C
- Storage temperature range (T-T)
- -25 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Supported network protocols
- IP, IPv6, FTP, TFTP, UDP, ICMP, TCP, ARP, NTP, OSPFv2, BOOTP, Telnet
- Switch layer
- L7
- Throughput
- 3.8 Mpps
- USB 2.0 ports quantity
- 7
- Weight
- 1080 g
- Width
- 269 mm
- Wireless LAN connection
- No
Specific References
- EAN13
- 0882658452376
Catalyst 2960-C, Fast Ethernet, 8 x 10/100 LAN, 2 x 1Gb Combo SFP, LAN Base, 1.08kg, White
