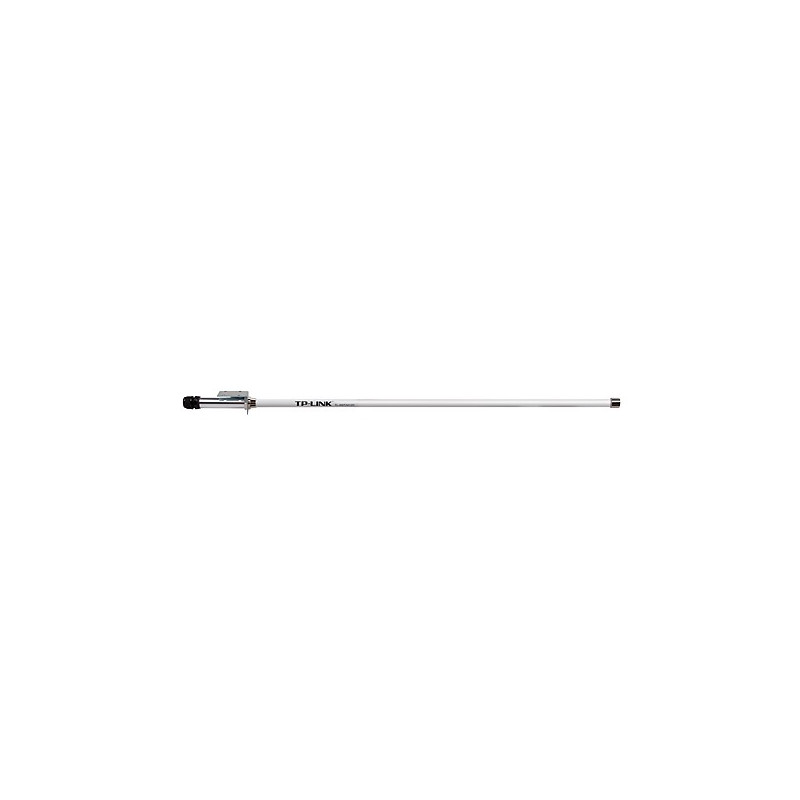

TP-LINK 2.4GHz 12dBi Outdoor Omni-directional Antenna
TL-ANT2412D - 2,4..2,5GHz, 50 Ω, 12 dBi
This antenna operates in the 2.4-2.5 GHz band and is designed for use outdoors.
- 12dBi all-directional operation makes your wireless coverage highly extended over a large area
- Weather proof design, suitable for all weather conditions
- N Female connector, applicable in most outdoor solutions
- Provides easy installation mounting kits.
- 12dBi all-directional operation makes your wireless coverage highly extended over a large area
- Weather proof design, suitable for all weather conditions
- N Female connector, applicable in most outdoor solutions
- Provides easy installation mounting kits.
Data sheet
- Antenna gain level (max)
- 12 dBi
- Antenna type
- omni
- Certification
- CE, FCC, RoHS
- Depth
- 1718 mm
- Frequency band
- European Union: 2.4122.472(13 channel); 5.1805.240(4 channel); 5.5005.700(8 channel); . Ret o World (Actual channel deignated by electing country UI): 2.4122.472(13 channel); 5.1805.240(4 channel); 5.2605.320(4 channel); 5.5005.700(11 channel); 5.7455.825
- Horizontal beam width
- 360 °
- Impedance
- 75 Ω
- Mounting
- Yes
- Network connection type
- WLAN
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -10 - 60 °C
- Polarization
- Vertically Linear
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage relative humidity range
- 5 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 80 °C
- Vertical beam width
- 6 °
- Voltage Standing Wave Ratio (VSWR)
- ≤2.0
- Width
- 48 mm
Specific References
- EAN13
- 6935364052157
