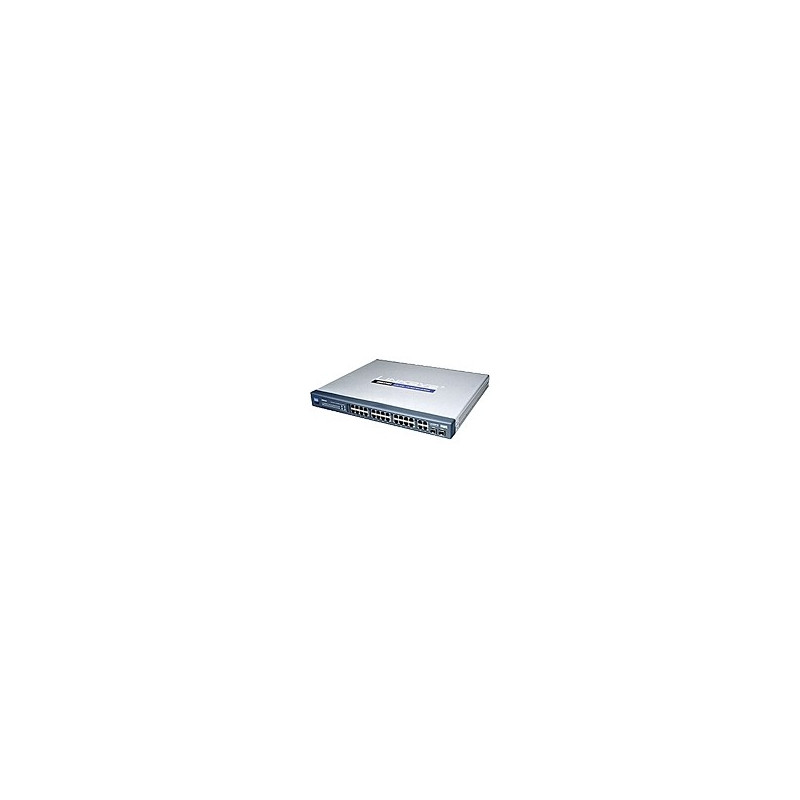

Cisco SRW224G4

Cisco SRW224G4

Small Business Managed Switch SRW224G4, switch Managed, 24 ports
Out of Stock
Reference: SRW224G4-K9-UK

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Growing businesses require cost-effective networking solutions that can scale with ever-changing business needs. The Cisco SRW224G4 24-Port 10/100 + 4-Port Gigabit Switch brings a new level of intelligence and security to the network infrastructure. The twenty-four 10/100 Mbps ports enable you to consolidate your network from several smaller switches or hubs to a single managed switch. The optional Gigabit optical interfaces allow you to expand the network as your business grows.Network security is a top priority in any size business. Unauthorized access to the network and mission-critical data is a constant concern. The Cisco SRW224G4 is able to secure the network through 802.1X port authentication and MAC filtering. The 802.1X standard requires clients to authenticate themselves before the port will pass data for them.Businesses are recognizing the benefits of voice over IP (VoIP) and are quickly migrating their voice services to IP-based platforms, requiring their local area networks to support both voice and data applications. In unmanaged IP networks, bursty data sessions can disrupt voice packet delivery, causing poor voice quality. With the enhanced quality of service (QoS) and traffic management features in the Cisco SRW224G4, voice data can be prioritized, helping ensure clear and reliable voice communications.Enabling the advanced features of the Cisco SRW224G4 further secures the integrity of your network. The WebView interface provides an intuitive, highly secure management interface, enabling you to better utilize the comprehensive feature set of the switch, for a better-optimized, more secure network.
Cisco

Data sheet

Authentication method
RADIUS
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Certification
CE, FCC Class A certified, UL, cUL, CB, FCC Part 15
Colour of product
Black, Silver
Connectivity technology
Wired
Copper ethernet cabling technology
100BASE-TX,10BASE-T
Data link protocols
Ethernet, Fast Ethernet
Dimensions (WxDxH)
430 x 203 x 45 mm
Ethernet LAN (RJ-45) ports quantity
24
Expansion slots
2 ( 2 ) x SFP (mini-GBIC)
LED indicators
Port status, link activity, port transmission speed, system
MAC address table
96000 entries
Management protocols
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS
Maximum data transfer rate
96 Gbit/s
Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 - 90 %
Ports quantity
24
Power over Ethernet (PoE) support
No
Source data-sheet
Icecat.biz
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Weight
2000 g

Specific References

EAN13
0882658296178
