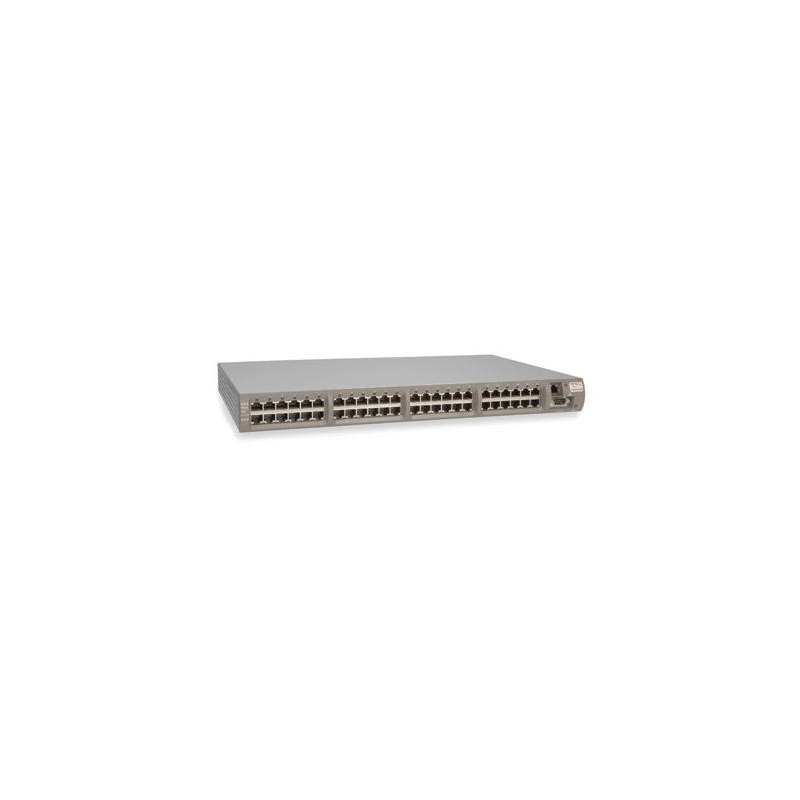

Microsemi PowerDsine 6524G
PowerDsine 6524G, 24-port, 400W
The PowerDsine 6500/6500G series sets a new standard for highly secure, remotely-managed and safe-to-use Power over Ethernet Midspans (PoE injectors).
PowerDsine 6500/6500G series comprises 6, 12 and 24- port models, making an even wider range of flexible Power over Ethernet installations possible.
PowerDsine 6500/6500G family allows IP telephones, wireless LAN access points, security network cameras and many other types of data terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With PoE, data and power flow smoothly and safely over a single LAN cable with no interference.
A PoE Midspan (PoE injector) resides between the Ethernet switch and the data terminals, delivering data, along with power, from switch to powered devices. It is a highly effective means for injecting power into LAN cables.
With support for SNMP, 6500/6500G series Midspans offer the most advanced and highly secure network management options, enabling full control over all Midspan operation aspects.
PowerDsine 6500/6500G series Midspans, which fully comply with the IEEE 802.3af PoE definition standard, provide a minimum of 15.4 Watts of power through each port and ensure safe operation of any standard PoE data terminal.
PowerDsine 6500/6500G series comprises 6, 12 and 24- port models, making an even wider range of flexible Power over Ethernet installations possible.
PowerDsine 6500/6500G family allows IP telephones, wireless LAN access points, security network cameras and many other types of data terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With PoE, data and power flow smoothly and safely over a single LAN cable with no interference.
A PoE Midspan (PoE injector) resides between the Ethernet switch and the data terminals, delivering data, along with power, from switch to powered devices. It is a highly effective means for injecting power into LAN cables.
With support for SNMP, 6500/6500G series Midspans offer the most advanced and highly secure network management options, enabling full control over all Midspan operation aspects.
PowerDsine 6500/6500G series Midspans, which fully comply with the IEEE 802.3af PoE definition standard, provide a minimum of 15.4 Watts of power through each port and ensure safe operation of any standard PoE data terminal.
Data sheet
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Colour of product
- Silver
- Connectivity technology
- Wired
- Dimensions (WxDxH)
- 438 x 272 x 44 mm
- Ethernet LAN (RJ-45) ports quantity
- 24
- Input frequency
- 47/63 Hz
- Input voltage
- 90 - 264 V
- Maximum data transfer rate
- 96 Gbit/s
- Mean time between failures (MTBF)
- 100000 h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Ports quantity
- 24
- Power consumption (typical)
- 400 W
- Power over Ethernet (PoE) support
- Yes
- Safety
- UL/cUL Per EN 60950 GS Mark Per EN 60950
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -20 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Specific References
- EAN13
- 0844117001297
PowerDsine 6524G, 24-port, 400W
