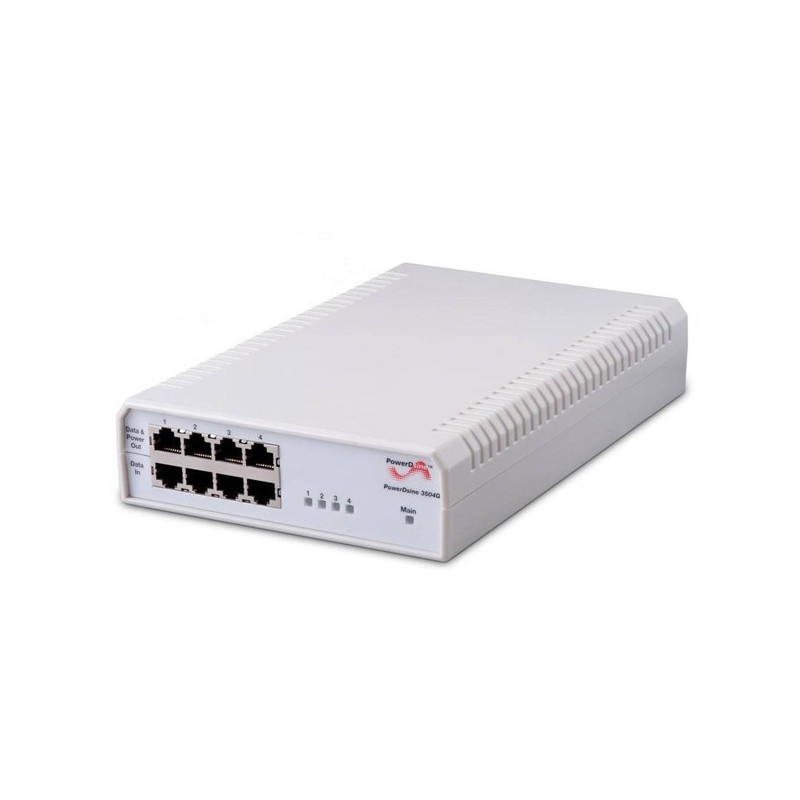

Microsemi PowerDsine PoE 4-Port Gig Midspan-802.3AF 4Port Small Footprint POE mi
4 x RJ-45 Output, 110 - 240 V, 61.6 W (4 x 15.4W), 10/100/1000Mbps, 1U, 48.26 cm (19 ")
Compact 4-port Gigabit Midspan for the enterprise market
The PowerDsine 3504G offers a cost effective, fully IEEE 802.3af compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. PowerDsine PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
The PowerDsine 3504G offers a cost effective, fully IEEE 802.3af compliant solution to upgrade existing infrastructures with PoE, providing a maximum of 15.4 watts of power through each port and ensuring safe operation of any standard PoE data terminal. PowerDsine PD-3504G provides PoE to IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 90-264 V
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Cabling technology
- 10/100/1000 Mbps
- Certification
- FCC Part 15 Class B
EN 55022 Class B
EN 55024
VCCI
RoHS
WEEE
CE - Colour of product
- White
- Compliance industry standards
- IEEE 802.3af
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Depth
- 224 mm
- Dimensions (WxDxH)
- 148 x 43 x 224 mm
- Ethernet LAN (RJ-45) ports quantity
- 4
- Heat dissipation
- 45 BTU/h
- Height
- 990mm
- I/O ports
- RJ-45, EIA 568A, 568B
- Input current
- 1.0 A
- Input voltage
- 80 - 264 V
- Mean time between failures (MTBF)
- 300000 h
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
- Operating altitude
- 914.4 - 2133 m
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Power availability
- 61.6 W
- Safety
- UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -20 - 70 °C
- Weight
- 620 g
- Width
- 993 mm
Specific References
- EAN13
- 0844117001303
4 x RJ-45 Output, 110 - 240 V, 61.6 W (4 x 15.4W), 10/100/1000Mbps, 1U, 48.26 cm (19 ")
