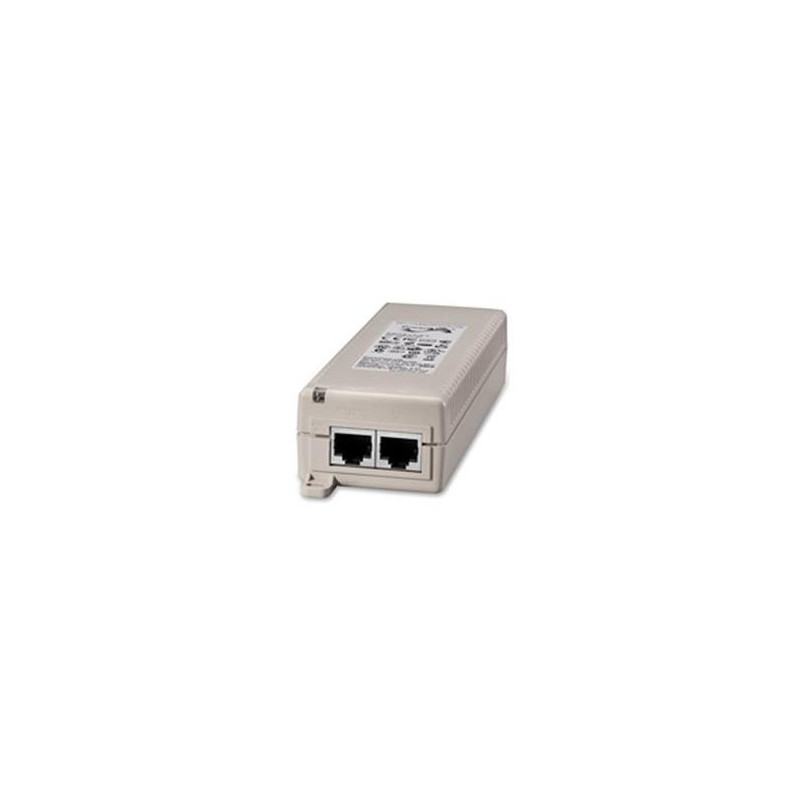

Microsemi PD-3501G/AC
1 x RJ-45 Port, 10/100/1000 Mbps, 802.3af, 200g
PowerDsine's 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Data sheet
- Cabling technology
- 10/100/1000BaseT
- Certification
- RoHS\nWEEE\nCE
- Compliance industry standards
- 802.3af
- Dimensions (WxDxH)
- 53 x 140 x 32.5 mm
- Electromagnetic compatibility
- FCC Part 15, Class B EN 55022 Class B EN 55024, VCCI
- Input current
- 9/4.5 A
- Input frequency
- 47 - 63 Hz
- Input voltage
- 90 - 264 V
- Operating altitude
- -304.8 - 3048 m
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Safety
- UL/cUL per EN 60950-1, GS Mark Per IEC 60950-1
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Weight
- 200 g
Specific References
- EAN13
- 0844117001389
1 x RJ-45 Port, 10/100/1000 Mbps, 802.3af, 200g
