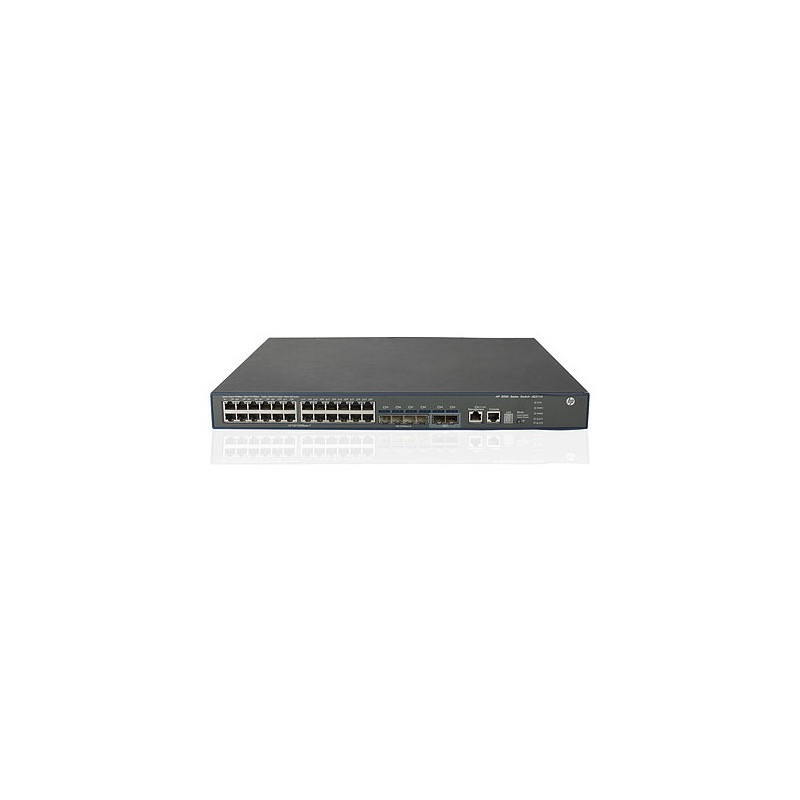

Hewlett Packard Enterprise 5500-24G-4SFP HI Switch
HP 5500-24G-4SFP HI Switch with 2 Interface Slots
The HP 5500 HI Series of Gigabit Ethernet switches delivers outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. The HP 5500 HI Switch Series supports a dual power supply and an IRF virtual fabric to provide the highest levels of resiliency and manageability. With complete IPv4/IPv6 and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed with two fixed 10G ports and extension flexibility, these switches can provide up to six 10-GbE uplink or 70 GbE ports.
- High expandability for investment protection
- Premium resiliency and integrated management
- Enhanced MPLS/VPLS support
- Full-featured IPv4/IPv6 dual stack
- Dual power supplies for high resiliency
- High expandability for investment protection
- Premium resiliency and integrated management
- Enhanced MPLS/VPLS support
- Full-featured IPv4/IPv6 dual stack
- Dual power supplies for high resiliency
Data sheet
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Colour of product
- Black
- Depth
- 439.9 mm
- Dimensions (WxDxH)
- 359.9 x 439.9 x 43.7 mm
- Flash memory
- 96 MB
- Heat dissipation
- 481 BTU/h
- Height
- 43.7 mm
- I/O ports
- 2 x SFP+
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 5 µs / 3 µs
- MAC address table
- 12000 entries
- Maximum data transfer rate
- 96 Gbit/s
- Mounting
- Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 15 - 95 %
- Operating relative humidity range
- 5 to 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Power consumption (typical)
- 141 W
- Safety
- UL 60950-1; EN 60825-1 1; EN 60825-2 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchpter; ROHS
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 15 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Throughput
- 130.9 Mpps Mpps
- Weight
- 7500 g
- Width
- 359.9 mm
Specific References
- EAN13
- 0886111896394
HP 5500-24G-4SFP HI Switch with 2 Interface Slots
