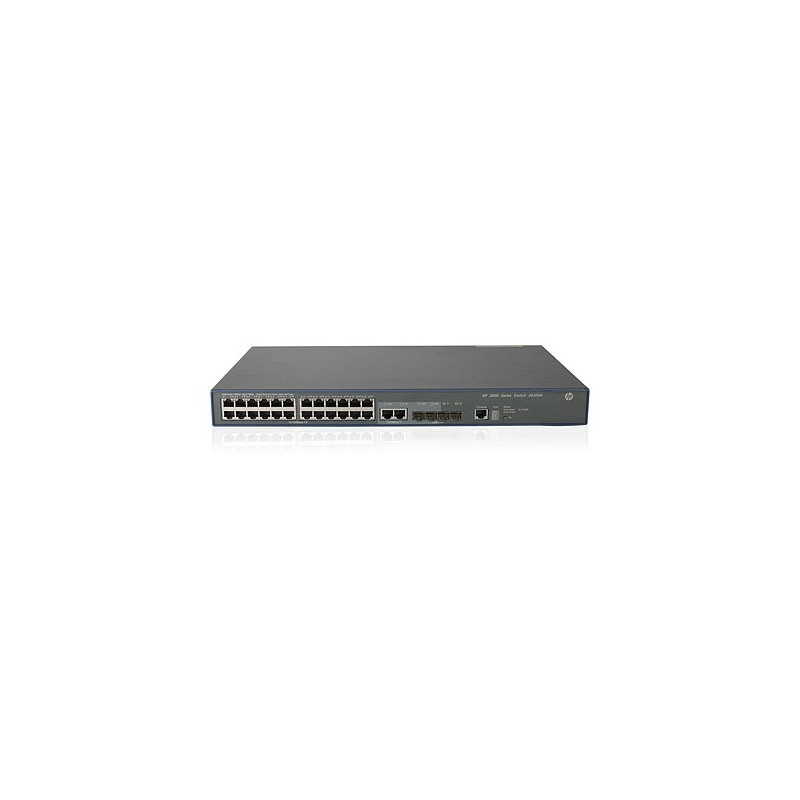

Hewlett Packard Enterprise 3600-24 v2 SI Switch
24x RJ-45 10/100, 256MB SDRAM, 12.8Gbps, IEEE 802.3/u/ab, 26W
The HP 3600 SI Switch Series delivers intelligent, resilient performance; security; and reliability for robust switching at the enterprise network edge. The series consists of Fast Ethernet and PoE/PoE+ switches, with features that can accommodate large enterprise and SMB applications. Secure, resilient connectivity, as well as the latest traffic-prioritization technologies, enhance converged networks. The switches are designed for improved flexibility and scalability.
- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
- Friendly port names: allow assignment of descriptive names to ports
- IPv6 (on v2 products): Telnet v6: to allow IPv6 management. DNS v6 Client: for IPv6 host management. SNMP v6: for IPv6 switch management. DHCP v6 Client: for auto IPv6 address configuration of a switch.
- Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed intra- and inter-module switching with up to 11.78 million pps throughput
- Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
- RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
- 16/32K MAC address table: provides access to many Layer 2 devices
- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
- Friendly port names: allow assignment of descriptive names to ports
- IPv6 (on v2 products): Telnet v6: to allow IPv6 management. DNS v6 Client: for IPv6 host management. SNMP v6: for IPv6 switch management. DHCP v6 Client: for auto IPv6 address configuration of a switch.
- Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed intra- and inter-module switching with up to 11.78 million pps throughput
- Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
- RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
- 16/32K MAC address table: provides access to many Layer 2 devices
Data sheet
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Colour of product
- Black
- DC-in jack
- Yes
- Depth
- 260.1 mm
- Dimensions (WxDxH)
- 439.9 x 260.1 x 43.7 mm
- Heat dissipation
- 89 BTU/h
- Height
- 43.7 mm
- MAC address table
- 96000 entries
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Supported data transfer rates
- 10/100
- Switching capacity
- 993.6 Gbps
- Weight
- 5000 g
- Width
- 439.9 mm
Specific References
- EAN13
- 0886111895069
24x RJ-45 10/100, 256MB SDRAM, 12.8Gbps, IEEE 802.3/u/ab, 26W
