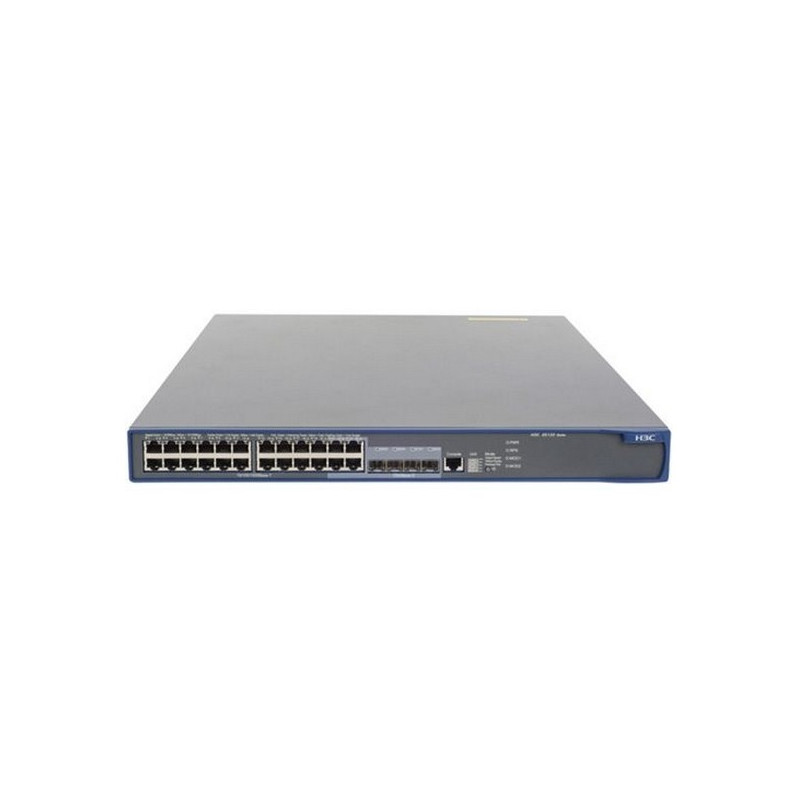

HP 5500-24G-PoE+ EI Switch with 2 Interface Slots

Hewlett Packard Enterprise 5500-24G-PoE+EI

Switch @ 2 Interface Slots, Duplex, 24x RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), 4x dual-personality ports, auto-sensing 10/100/1000Base-T or SFP; 2x port expansion module slots, 1x RJ-45 serial console port, Routing table size: 12000 entries, Routing/switching capacity: 144Gbps, Throughput: 107.2 million pps, 1000Mb Latency: < 3.2µs, 10Gbps Latency: < 2.6µs, 256MB SDRAM, packet buffer size: 2MB, 32MB flash
Out of Stock
Reference: JG241A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
These Gigabit Ethernet switches deliver outstanding security, reliability, and multi-service support capabilities for robust switching.



- High expandability for investment protection.

- Premium security and integrated management.

- Multilayer reliability.

- Convergence-ready support.

- Outstanding quality of service (QoS).

Data sheet

10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Colour of product
Black
Connectivity technology
Wired
Copper ethernet cabling technology
1000BASE-T,100BASE-T,100BASE-TX
Dimensions (WxDxH)
420 x 440 x 43.6 mm
Ethernet LAN (RJ-45) ports quantity
24
Flash memory
96 MB
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
2.6/3.2µs
Management platform
IMC
Management protocols
ЫТЬЗ
Maximum data transfer rate
96 Gbit/s
Memory type
Flash
Networking features
Yes
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity (H-H)
5 - 95 %
Operating relative humidity range
5 - 95 %
Operating temperature (T-T)
32 - 113 °F
Operating temperature range (T-T)
0 - 45 °C
Power consumption (typical)
575 W
Power over Ethernet (PoE) support
Yes
Power requirements
52 - 55V DC
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage relative humidity range
5 - 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Switching capacity
144 Gbit/s
Throughput
107200000pps Mpps
Weight
6000 g
Wireless LAN connection
No

Specific References

EAN13
0886111500666
