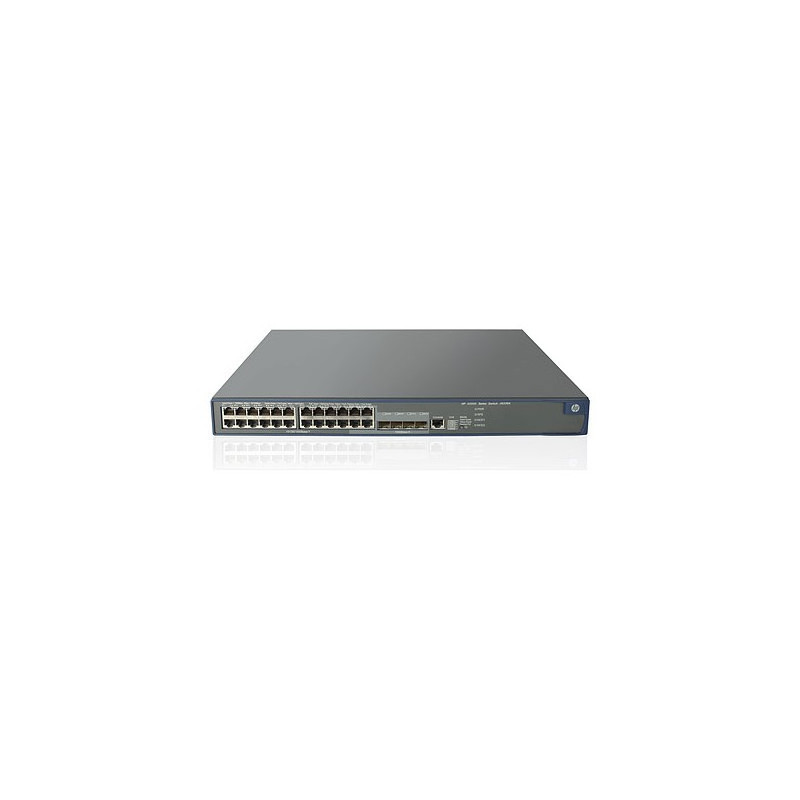

HP 5500-24G-PoE+ SI Switch with 2 Interface Slots

Hewlett Packard Enterprise 5500-24G-PoE

24x RJ-45 a10/100/1000 PoE+, 144 Gbps, IEEE 802.3/u/ab/at
Out of Stock
Reference: JG238A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
These Gigabit Ethernet switches deliver quad-speed performance 10/100/1000 and 10 Gigabit Ethernet, as well as advanced voice-enhanced features such as Power over Ethernet (PoE), auto-voice VLAN, and Quality of Service (QoS). As a result, they are ideal for enterprise organizations seeking to build a secure, convergence-enhanced campus network. Robust IPv6 support and 10 Gigabit Ethernet uplinks future-proof an enterprise network against obsolescence. Resilient Ring Protection Protocol (RRPP), Smart Link, and Intelligent Resilient Framework (IRF) deliver 50 ms switchover and carrier-class reliability.

- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic

- Friendly port names: allow assignment of descriptive names to ports

- Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

- Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput

- Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance

- 16K MAC address table: provides access to many Layer 2 devices

- Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet

Data sheet

AC input frequency
50/60 Hz
AC input voltage
100-240 V
Basic switching RJ-45 Ethernet ports quantity
24
Certification
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Colour of product
Black
Connectivity technology
Wired
Copper ethernet cabling technology
100BASE-T, 100BASE-TX, 10BASE-T
DC-in jack
Yes
Depth
420.1 mm
Dimensions (WxDxH)
420 x 440 x 43.6 mm
Ethernet interface type
Gigabit
Ethernet LAN (RJ-45) ports quantity
24
Ethernet LAN connection
Yes
Ethernet LAN data transfer rates
10, 100, 1000 Mbit/s
Flash memory
96 MB
Heat dissipation
290 BTU/h
Height
43.7 mm
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
MAC address table
96000 entries
Management protocols
IMC, SNMP
Networking features
Yes
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 - 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 45 °C
Ports quantity
28
Power consumption (typical)
455 W
Power over Ethernet (PoE) support
Yes
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Source data-sheet
Icecat.biz
Supported data transfer rates
10/100/1000
Switching capacity
144 Gbit/s
Throughput
107200000 pps
Weight
5990 g
Width
439.9 mm
Wireless LAN connection
Yes

Specific References

EAN13
0886111500635
