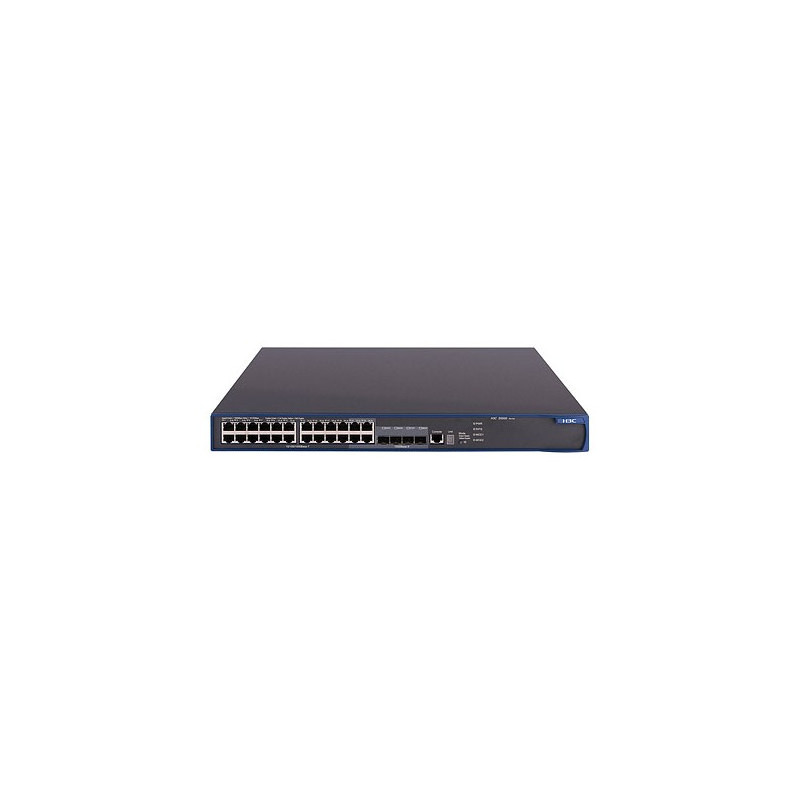

HP A A5500-24G EI Switch with 2 Interface Slots

Hewlett Packard Enterprise 5500-24G EI

1U, Gigabit Ethernet, Mng, L2/3, 24 x RJ-45, 4 x Combo, 2 x Slots, 256MB/32MB, 32K MAC, 4kg, Grey
Out of Stock
Reference: JD377A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
HP A5500 EI Switch Series

These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks or in the core layer of SMB networks. The HP A5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual stack support, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed for increased flexibility, these switches are available with 24 Gigabit Ethernet ports.



Key features

- High expandability for investment protection;

- Premium security and integrated management;

- Multilayer reliability;

- Convergence-ready support;

- Outstanding quality of service (QoS).

Data sheet

10G support
Yes
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Certification
FCC, VCCI, CISPR 22, ICES, ANSI, ETSI, AS/NZS, EMC, WEEE
Colour of product
Grey
Connectivity technology
Wired
Copper ethernet cabling technology
1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T
Depth
300 mm
Dimensions (WxDxH)
300 x 440 x 43.6 mm
Electromagnetic compatibility
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Ethernet LAN (RJ-45) ports quantity
24
Flash memory
96 MB
Heat dissipation
375 BTU/h
Height
990mm
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
2.6
MAC address table
96000 entries
Management protocols
LLDP, STP, NTPv3, SNMPv1/v2c/3, RMON, SSHv1/SSHv2
Maximum data transfer rate
96 Gbit/s
Memory type
SDRAM
MIB support
MIB II, BGP-4, RIPv2, OSPFv2, SNMPv2, IPV6-TCP, IPV6-UDP, VRRP, RMON
Networking features
Yes
Networking standards
IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 - 90 %
Operating temperature (T-T)
32 - 113 °F
Operating temperature range (T-T)
0 - 45 °C
Power consumption (typical)
9W
Power over Ethernet (PoE) support
No
Safety
UL, EN, IEC, CAN/CSA, FDA, ROHS
Security algorithms
802.1x RADIUS,SSH
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 59 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 158 °C
Supported data transfer rates
10/100 Mbit/s
Supported network protocols
IP, DNS, TFTP, UDP, ICMP, TCP, VRRP, BOOTP, Telnet, GPRP, MLD/MLDv2, MTU, ICMPv6, RRPP, IRF, ARP
Switch layer
L7
Switching capacity
144 Gbit/s
Throughput
107.2 mpps Mpps
Weight
4000 g
Width
993 mm
Wireless LAN connection
Yes

Specific References

EAN13
0885631188262
