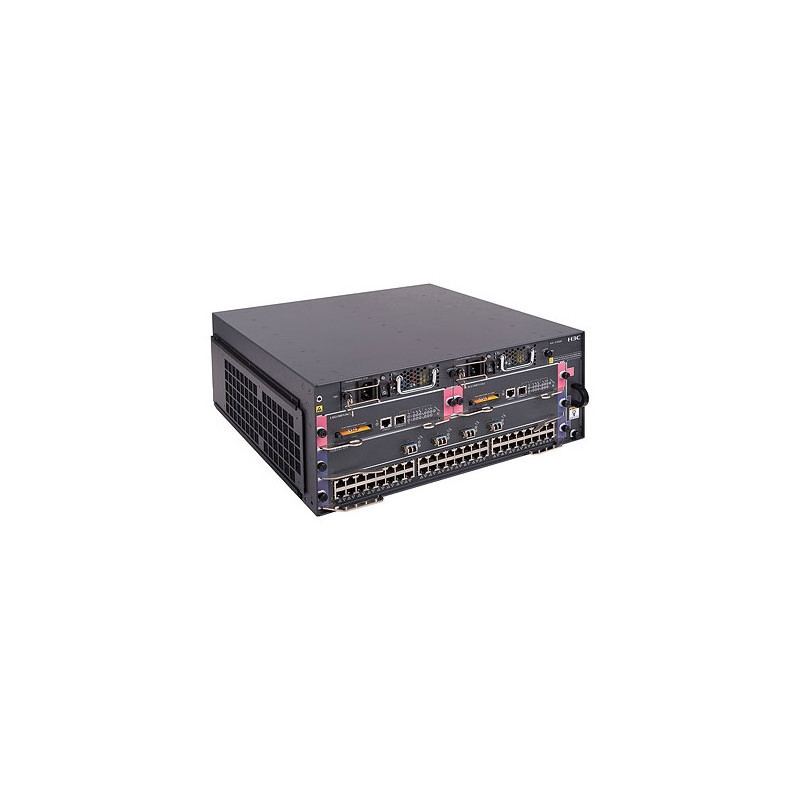

HP 7502 Switch Chassis

Hewlett Packard Enterprise 7502 Switch Chassis

HP 7502 Switch Chassis
Out of Stock
Reference: JD242B

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.



With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Data sheet

Depth
420 mm
Dimensions (WxDxH)
420 x 436 x 175 mm
Electromagnetic compatibility
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Fan trays
1 x JD213A
Form factor
4U height
Height
175 mm
I/O ports
2 MPU (for management modules) slots; 2 I/O module slots; Supports a maximum of 16 10-GbE ports or 96 autosensing 10/100/1000 ports or 96 SFP ports, or a combination
Input current
5/10 A
Input frequency
50 / 60 Hz
Input voltage
100-120/200-240 VAC; -48 - -60(depending on power ↑ply choen)
MAC address table
512000 entries
Management platform
IMC - Intelligent Management Center Command-line interface Web browser Out-of-band management (serial RS-232C) SNMP manager Telnet Terminal interface (serial RS-232C) Modem interface IEEE 802.3 Ethernet MIB Ethernet interface MIB
Mounting
Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); horizontal surface mounting only
Operating relative humidity range
10 to 95 %
Operating temperature range (T-T)
0 - 45 °C
Output power
DC 9V
Power requirements
Based on common power supply 300 W (AC/DC)
Rack capacity
9U
Safety
UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11
Source data-sheet
Icecat.biz
Storage temperature range (T-T)
-40 - 70 °C
Switching capacity
1920 Gbit/s
Throughput
966
Weight
26760 g
Width
436 mm

Specific References

EAN13
0885631250587
