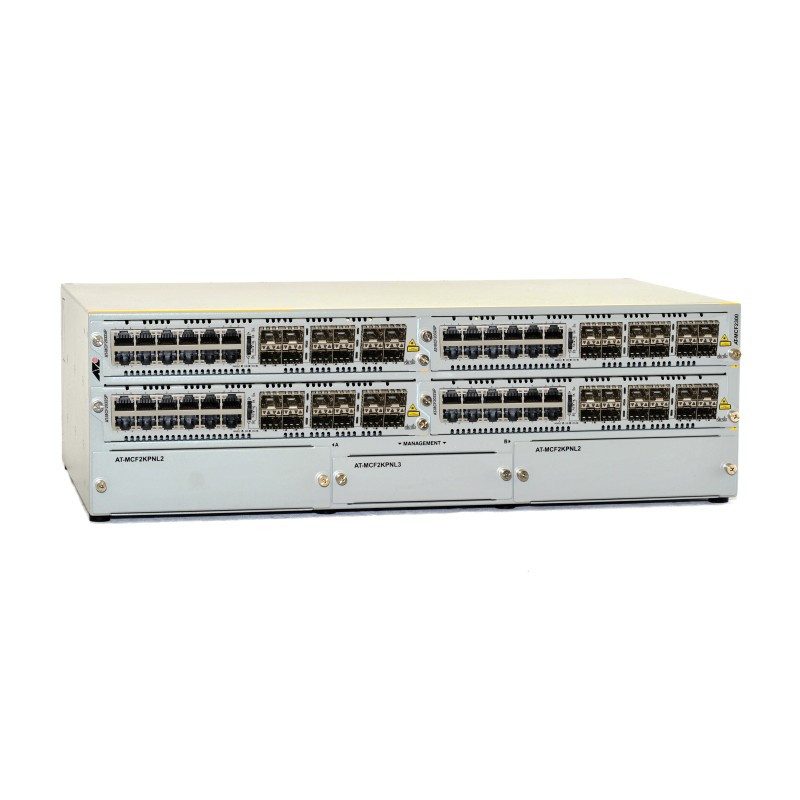

Allied Telesis AT-MCF2300
AT-MCF2300 - Multi-channel 4 slot modular chassis, 48 channels, 48.26 cm (19 ") rack-mountable
The AT-MCF2300 is an end-to-end managed media conversion system. The 3RU chassis can hold either one to four multichannel blades, providing a maximum of 48 independent channels. An optional management module provides control of the chassis, while dual hot swappable power modules ensure maximum system uptime.
- 4 slots modular media converter chassis
- High density media blades
- Supports up to 48 channels in 3RU rack space
- Managed and unmanaged operation
- SNMP,Telnet and RS232 management
- Hot-swappable blades, power supplies and management modules
- Stackable architecture allows one management module to control multiple chassis
- Stackable architecture providing redundant management
- Multiple user level management privileges
- Management module replacement without channel traffic interruption
- Simple field maintenance
- Blades support MissingLinkTM and Smart MissingLinkTM
- Blades support auto MDI/MDI-X
- Support for both single and multi-mode fiber
- Designed to support Fast Ethernet, Gigabit & SFP blades
- Designed for IEEE 802.3ah (EFM) support on selected media blades
- 4 slots modular media converter chassis
- High density media blades
- Supports up to 48 channels in 3RU rack space
- Managed and unmanaged operation
- SNMP,Telnet and RS232 management
- Hot-swappable blades, power supplies and management modules
- Stackable architecture allows one management module to control multiple chassis
- Stackable architecture providing redundant management
- Multiple user level management privileges
- Management module replacement without channel traffic interruption
- Simple field maintenance
- Blades support MissingLinkTM and Smart MissingLinkTM
- Blades support auto MDI/MDI-X
- Support for both single and multi-mode fiber
- Designed to support Fast Ethernet, Gigabit & SFP blades
- Designed for IEEE 802.3ah (EFM) support on selected media blades
Data sheet
- Chassis type
- 3RU
- Dimensions (WxDxH)
- 440 x 277 x 129 mm
- Operating altitude
- 0 - 4000 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Ports quantity
- 4
- Power requirements
- 100 - 250 V AC, 50/60 Hz
- Rack capacity
- 9U
- Safety
- EN 55024, UL 60950-1, CSA 22.2, TUV, CE, FCC, EN 55022, EN 55024, VCCI, C-Tick
- Size
- 19 "
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Weight
- 7100 g
Specific References
- EAN13
- 7670351910414
AT-MCF2300 - Multi-channel 4 slot modular chassis, 48 channels, 48.26 cm (19 ") rack-mountable
