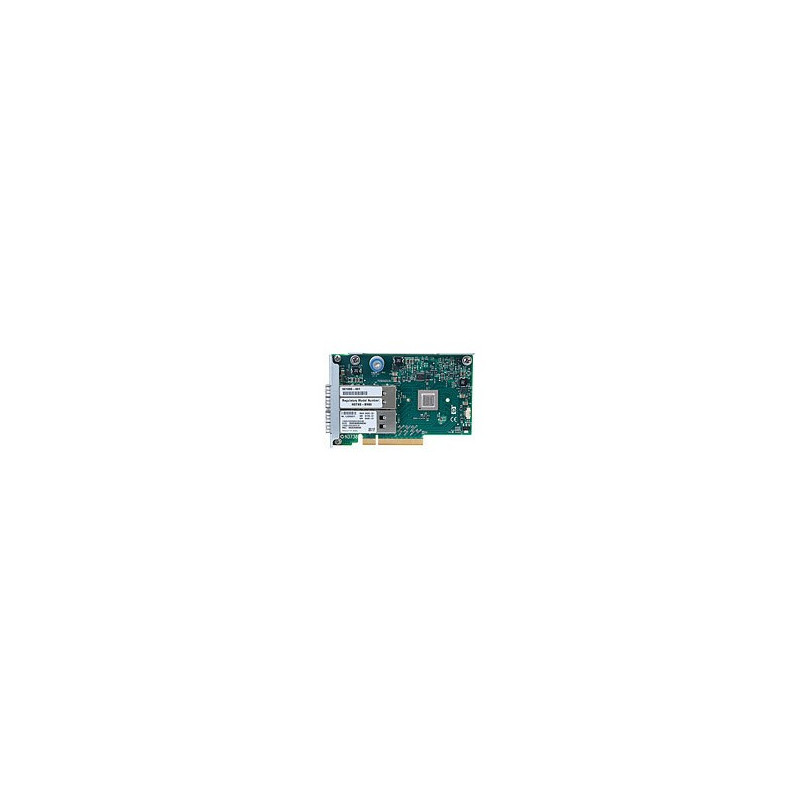

Hewlett Packard Enterprise 649283-B21
2 x InfiniBand, PCIe, 10Gb/s,9.8W Max
The next generation of HP Infiniband/Ethernet Adapters for select HP ProLiant SL, DL and ML servers, consists of three adapters, two with a new ALOM form factor known as FlexibleLOM for Racks (FLR), and one PCIe card:
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544FLR-QSFP Adapter
- HP Infiniband QDR/Ethernet 10Gb 2P 544FLR-QSFP Adapter
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544QSFP Adapter
Based on next-generation Mellanox ConnectX-3 technology and PCI Express 3.0 for unprecedented scalability and fabric flexibility, they can all function as a dual ported InfiniBand card, a dual ported Ethernet card, or a mixed function card. Together with the next generation of HP Infiniband FDR edge switches, they deliver low-latency InfiniBand bandwidth, up to 56 Gb/s Fourteen Data Rate (FDR) or up to 40 Gb/s Quad Data Rate (QDR), for performance driven server and storage clustering applications in High Performance Computing (HPC) and enterprise data centers.
Next Generation InfiniBand/Ethernet Adapters for Select HP ProLiant SL, DL, and ML Servers.
Performance driven ConnectX-3 architecture for InfiniBand bandwidth up to 56 Gb/s (FDR), Ethernet bandwidth up 40 Gb/s, and reduced application latency for either InfiniBand or Ethernet operation. PCI Express 3.0 x8. Maximum effective network bandwidth through hardware-based traffic segregation (Qos) and congestion control. Low latency 10, 20, or 40 Gb/s Ethernet for FSI environments. Low power requirements, low cost per Gb/s bandwidth.
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544FLR-QSFP Adapter
- HP Infiniband QDR/Ethernet 10Gb 2P 544FLR-QSFP Adapter
- HP Infiniband FDR/Ethernet 10Gb/40Gb 2P 544QSFP Adapter
Based on next-generation Mellanox ConnectX-3 technology and PCI Express 3.0 for unprecedented scalability and fabric flexibility, they can all function as a dual ported InfiniBand card, a dual ported Ethernet card, or a mixed function card. Together with the next generation of HP Infiniband FDR edge switches, they deliver low-latency InfiniBand bandwidth, up to 56 Gb/s Fourteen Data Rate (FDR) or up to 40 Gb/s Quad Data Rate (QDR), for performance driven server and storage clustering applications in High Performance Computing (HPC) and enterprise data centers.
Next Generation InfiniBand/Ethernet Adapters for Select HP ProLiant SL, DL, and ML Servers.
Performance driven ConnectX-3 architecture for InfiniBand bandwidth up to 56 Gb/s (FDR), Ethernet bandwidth up 40 Gb/s, and reduced application latency for either InfiniBand or Ethernet operation. PCI Express 3.0 x8. Maximum effective network bandwidth through hardware-based traffic segregation (Qos) and congestion control. Low latency 10, 20, or 40 Gb/s Ethernet for FSI environments. Low power requirements, low cost per Gb/s bandwidth.
Data sheet
- Certification
- FCC, Class A
ICES, Class A
EN55022, Class A
EN55024, Class A
EN61000-3-2, Class A
EN61000-3-3, Class A
VCCI, Class A
MIC, Class A
BSMI, Class A - Colour of product
- Grey
- Compatible memory cards
- No
- Connectivity technology
- Wired
- Connector(s)
- InfiniBand
- Data transfer rate
- 10 Gbit/s
- Host interface
- PCI-E
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating temperature range (T-T)
- 0 - 55 °C
- Ports quantity
- 2
- Power consumption (typical)
- 9.8 W
- Source data-sheet
- Icecat.biz
- Wireless LAN connection
- No
Specific References
- EAN13
- 0886111482115
2 x InfiniBand, PCIe, 10Gb/s,9.8W Max
